High Quality Extruder Gearbox Factory Since 1990

High motor inputs and intense back-pressures often cause gear misalignment and early drive failure on busy extrusion lines. Operating as a specialized, China-based Extruder Gearbox factory, HAPPY PLASTICS eliminates these processing vulnerabilities through our precision helical gear trains and heavy-duty integrated thrust bearings. Since 1990, our manufacturing facility has delivered robust speed reduction units that absorb extreme axial counter-pressures, providing industrial compounding lines with stable output shaft speeds and long-term mechanical reliability.

What Mechanical Forces Govern High-Torque Extruder Speed Reductions?

Unlike standard industrial gearboxes that only manage rotational torque transitions, professional extrusion gearboxes need to cope with two contradictory mechanical forces at the same time. It is required to reduce high motor rotating speed to low-speed and high-torque output, and meanwhile withstand huge axial back pressure generated when screw pushes viscous melt through narrow die openings.

Ordinary radial bearings are easy to be crushed by continuous strong axial thrust, resulting in sudden gearbox shutdown. Our customized Extruder Gearbox is equipped with independent reinforced thrust housing and tandem spherical roller thrust bearings. It separates reduction gears from backward screw thrust completely, avoiding shaft deflection and excessive friction heat. This optimized mechanical structure extends gear service life by up to 26% under long-term continuous high-pressure extrusion working conditions.

How Do Transmission Metallurgies Prevent Teeth Flaking and Bearing Failure?

When auditing qualified Extruder Gearbox suppliers, factory engineering teams should focus on gear material and integral heat treatment process. Cyclic alternating torque load during long-run extrusion easily causes micro pits on gear tooth surfaces, further leading to tooth peeling, bearing stuck and irreversible gearbox damage.

What Tailored Drive and Gear Housing Styles Can HAPPY PLASTICS Supply?

HAPPY PLASTICS owns an ISO9002-certified production workshop, equipped with professional CNC gear grinding machines, carburizing heat treatment furnaces and horizontal boring equipment. All gearbox products are manufactured in strict accordance with international industry standards, supporting direct plug-and-play replacement without modifying original extrusion equipment.

Drive Orientation & Structure Lines

We develop two mainstream gearbox structures to match different workshop space layouts and extrusion machine types:

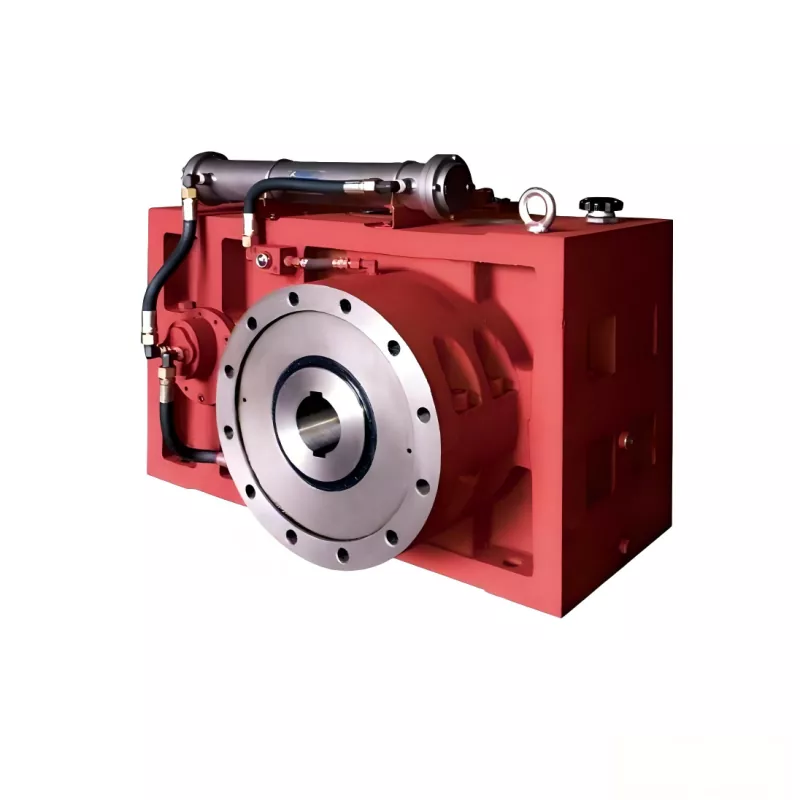

• Horizontal single screw Extruder Gearbox: Designed for conventional single screw extrusion lines used for pipe, sheet and plastic pellet production. Adopting split box low-profile structure, this gearbox features stable operation, low vibration and convenient top cover disassembly, which supports fast daily gear inspection and maintenance.

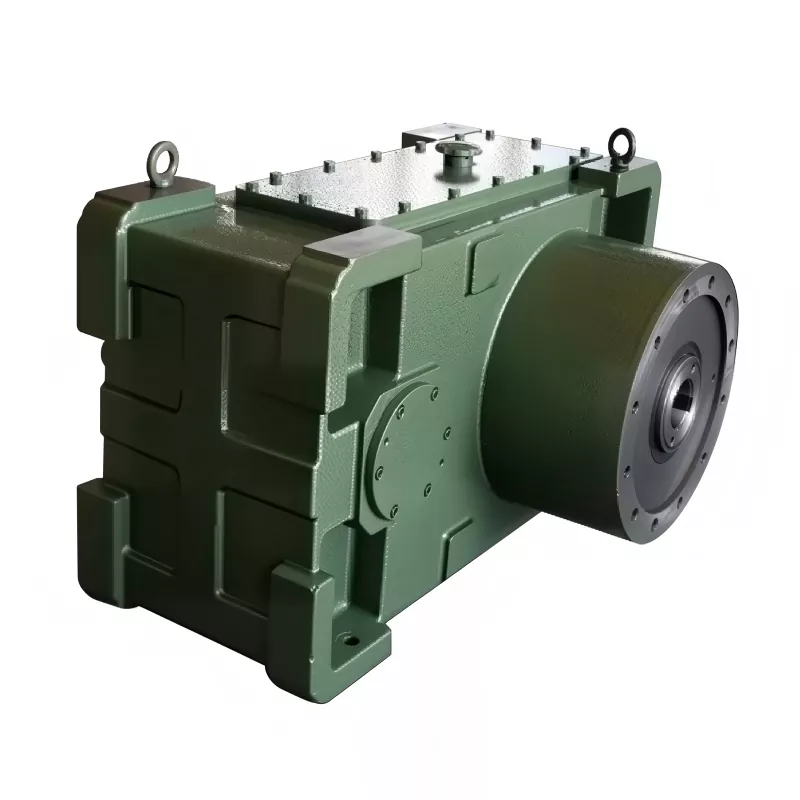

• Integrated extruder gearbox: Suitable for modern compact co-extrusion equipment with limited installation space. It integrates oil pump, water cooling system and thrust bearing base into one-piece housing, reducing external connecting pipelines, lowering installation difficulty and saving overall workshop floor space.

High-Precision Transmission Internals

All HAPPY PLASTICS extruder gearboxes adopt high-precision matching transmission parts to guarantee low noise, high efficiency and stable long-term operation:

• Ground Helical Gearing: All gears are carburized and quenched to reach 60 HRC hardness, polished up to AGMA 12 precision grade. Effectively eliminate gear backlash and improve overall torque transmission efficiency.

• Forced Lubrication Manifolds: Full-automatic circulating forced oil supply system delivers cooled filtered lubricating oil to gear meshing surfaces and thrust bearings, timely taking away friction heat and avoiding local high temperature failure.

How to Select the Ideal Gearbox Configuration for Space-Constrained Plant Floors?

Gearbox selection needs to comprehensively consider equipment torque demand and actual workshop installation space. For traditional large-scale extrusion production lines without space limits, horizontal split-case gearbox is the preferred solution. It bears uniform torque load, and maintenance workers can inspect internal gears quickly without dismantling motor components.

For compact multi-layer co-extrusion lines and space-tight workshops, integrated coaxial Integrated extruder gearbox is more applicable. It realizes compact inline installation, cancels redundant connecting parts and external cooling pipelines, while maintaining consistent high torque output to meet high-efficiency compounding production demands.

How to Solve High Oil Temperatures and Gearbox Backlash Surges?

Heavy-duty Extruder Gearbox components effectively solve two common gearbox operating faults: excessive oil temperature and unstable backlash fluctuation. Long-term high axial thrust will generate massive friction heat, thinning lubricating oil film and causing direct metal contact between gears, finally leading to tooth wear and unstable extrusion speed.

Our exclusive built-in forced cooling lubrication system matches shell-and-tube heat exchanger, which continuously circulates and cools lubricating oil. It stably controls internal oil temperature below 60℃ during 24-hour non-stop operation, keeps complete oil film protection for gears and bearings, stabilizes gear meshing clearance, and avoids speed surge and vibration caused by backlash change.
