High Quality and Customized Accessories of Screw and Barrel

Procuring precision Accessories of Screw and Barrel assemblies directly from China's HAPPY PLASTICS factory allows international plastics processors to eliminate unexpected pressure drops and misalignment wear. Since 1990, our specialized component division has manufactured high-tolerance valving, connection hardware, and front-end delivery systems designed to protect core plasticizing machinery, stabilize melt distribution, and prevent costly material leakage at high operational pressures.

How Do Front-End Accessories Prevent Backflow and Melt Stagnation?

While the main screw thread is responsible for melting and conveying the polymer, front-end accessories determine the precision of injection shot weight and extrusion molding stability. At the screw tip transition area where molten resin flows into mold runners, equipment is prone to pressure fluctuation and trapped stagnant material.

Once front-end valve parts fail to seal instantly during injection stroke, massive molten plastic will flow back along screw flights, triggering unstable shot weight, product sink marks and other persistent molding defects. Our high-precision Accessories of Screw and Barrel adopt optimized sealing structure and mirror-polished inner flow channels. With strict matching tolerance between check ring and thrust washer, instantaneous sealing is realized during injection, effectively avoiding melt backflow and material carbonization, and cutting production scrap rate by up to 14% for automated molding lines.

How Do Advanced Metallurgy Treatments Protect High-Velocity Nozzles?

When auditing qualified Accessories of Screw and Barrel suppliers, maintenance engineers shall focus on surface hardening technology instead of only checking basic dimensions. Melt flow speed rises sharply at narrow nozzle runners, and abrasive fillers and corrosive volatile gas will cause severe wear and corrosion on nozzle inner walls.

Which Specialized Machine Accessories Does HAPPY PLASTICS Manufacture?

HAPPY PLASTICS owns an ISO9002-certified workshop equipped with multi-axis CNC internal grinding machines, high-precision numerical control lathes and vacuum heat treatment furnaces. All screw and barrel accessories are produced in strict accordance with original machine parameters, supporting direct plug-and-play replacement without extra equipment modification.

High-Pressure Delivery Systems

Front-end flow control parts are professionally strengthened to adapt to long-term cyclic high-pressure working conditions, keeping smooth melt delivery without flow dead corners:

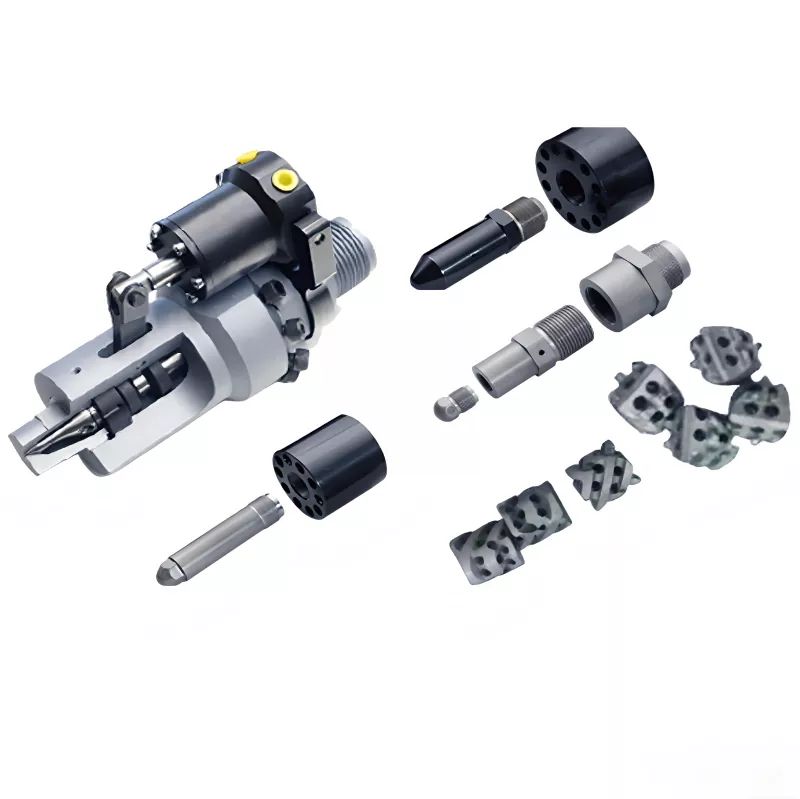

• Screw barrel head and nozzle: Matches barrel heating zone perfectly to realize steady melt temperature transition. Inner hole adopts mirror polishing process to eliminate material stagnant dead zones, preventing plastic burning and carbon deposits during high-speed continuous injection and extrusion.

Heavy-Duty Alignment Hardware

High-strength connecting accessories are designed to keep overall equipment coaxiality, facilitating daily screw disassembly, cleaning and routine maintenance:

• Screw barrel hinge pin: Made of high-strength alloy steel, supporting heavy barrel turnover and opening during maintenance. It effectively avoids shaft bending, jamming and surface galling caused by thermal expansion, improving overall maintenance efficiency and operational safety.

How to Select the Right Nozzle Tip Geometry for Drool-Free Processing?

The nozzle orifice structure must match the melt fluidity and processing temperature of specific plastics. When producing low-viscosity nylon and other engineering plastics, ordinary straight-through nozzles easily cause material drooling and wire drawing during mold opening, leading to runner blockage and reduced production efficiency.

Our customized Screw barrel head and nozzle adopts reverse taper structure or spring self-locking shut-off design. It can automatically close the nozzle outlet when injection pressure drops, achieving clean material breaking without drooling. It fits fully automatic unmanned production lines and cuts manual cleaning work greatly.

How to Prevent Thread Seizure and Galling on Front-End Barrel Components?

Accessories of Screw and Barrel solve common maintenance failures including thread seizure, surface galling and component cracking. Front-end accessory threads are prone to metal fusion and sticking after repeated heating and cooling cycles if machining tolerance is unqualified.

All connecting threads of our accessories are processed by high-precision CNC thread cutters to keep stable matching tolerance under frequent temperature changes. Meanwhile, matched surface oxidation treatment forms a built-in lubricating layer on thread surfaces. It avoids thread bonding effectively, allowing quick disassembly and replacement without damaging original screw and barrel threads.
