China Reliable Injection Molding Machine Screw Supplier

Global factories partner with HAPPY PLASTICS to buy injection molding machine screw assemblies to fix dosing delay and pressure drops. Established in 1990, our manufacturing facility delivers precision-engineered screw designs that optimize material melting stability, cutting scrap rates by 15% and directly enhancing dimensional repeatability across high-speed molding lines.

What is an Injection Molding Machine Screw?

An Injection molding machine screw is the core operational component inside the plasticizing barrel assembly of injection equipment. It undertakes conveying, compressing, melting and metering solid plastic pellets before molten resin is injected into mold cavities.

Each screw consists of three functional zones: feeding zone, compression plasticizing zone and metering zone. The geometric structure of each zone controls shear heat generation and melt mixing uniformity, which determines final molding quality.

What is the Major Difference Between Nitrided Screws and Bimetallic Injection Molding Machine Screw?

Performance gaps mainly lie in internal metallurgy and anti-abrasion capacity under long-cycle production.

• Standard nitrided screw: Hardness 850–950 HV with thin hardened surface layer

• Bimetallic injection molding machine screw: Tungsten carbide/nickel alloy cladding on flight surface, hardness above 60 HRC

Practical Production Comparison

When processing plastics with over 15% glass fiber filler, common nitrided injection molding machine screw will suffer severe flight abrasion within 6 months and trigger melt backflow. A bimetallic screw extends service life 3–5 times under the same abrasive working conditions, maintaining stable backpressure without structural damage.

What Types of Specialized Injection Molding Machine Screw Options Does HAPPY PLASTICS Provide?

As an ISO9001 certified integrated manufacturer founded in 1990, HAPPY PLASTICS develops customized screws matching different resin properties and mainstream injection machine brands.

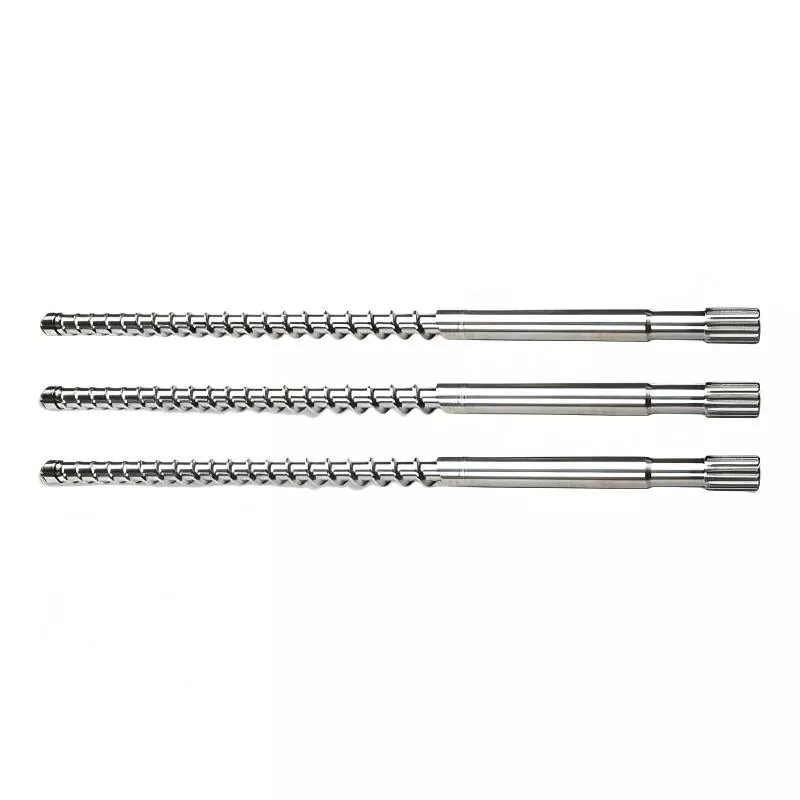

1. Plastic Injection Machine Screw Configurations

We customize screw geometry including barrier threads, mixing pins and exhaust sections to adapt diverse plastic fluidity.

2. Brand-Matched OEM Screw Series

We supply wholesale injection molding machine screw with 1:1 original equipment dimensions for direct replacement:

• Screw for HAITIAN injection machine: Compatible with Haitian MA, IA, Jupiter series; consistent positioning key and heating hole layout for fast installation

• Screw for Chen Hsong injection machine: Customized for Jetmaster & EasyMaster lines; solves unstable metering defects of old equipment

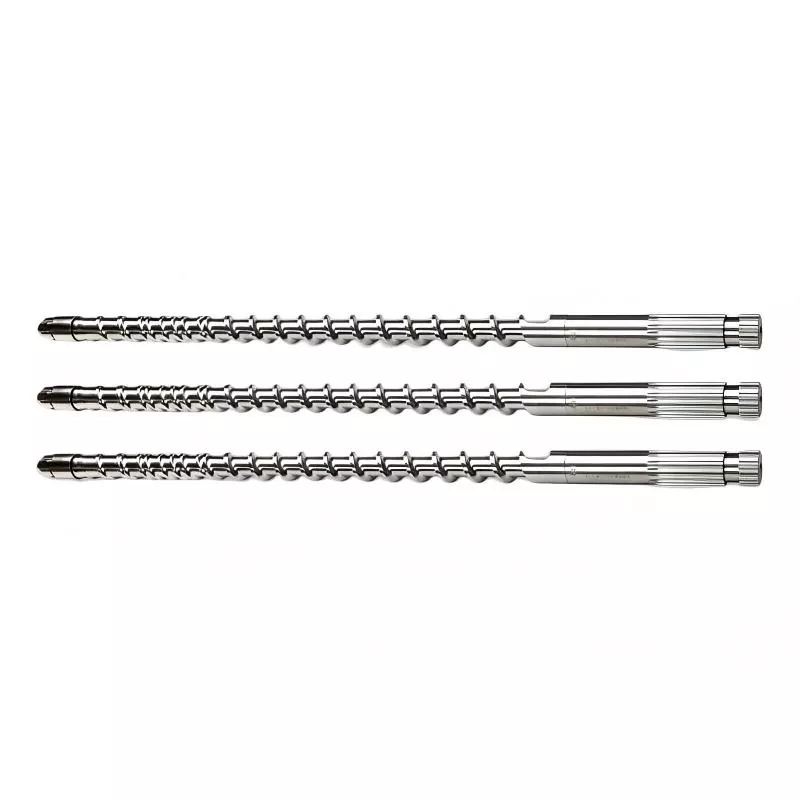

• Screw for YIZUMI injection machine: Optimized for A5, UN series; restores factory-standard plasticizing efficiency and stable shot weight

3. High-Wear Supporting Valve Parts

Injection Screw Head: 3-piece precision non-return valve sets with check ring and thrust washer, effectively stopping melt backflow under high injection pressure. Mirror polishing eliminates material stagnation, avoiding carbonization and black speck defects.

How to Choose the Right Injection Molding Machine Screw for Your Factory?

Select matched Injection molding machine screw based on your plastic type and filler proportion:

1. Corrosive / halogen-free flame retardant resin: Choose halogen-free alloy screw to avoid inner surface corrosion and pitting

2. High glass fiber / mineral filled modified plastic: Adopt bimetallic screw paired with hardened injection screw head to resist particle abrasion

How Does HAPPY PLASTICS Guarantee Dimensional Accuracy & Long Service Life of All Plastic Injection Machine Screw?

We implement full-process standardized inspection to guarantee stable performance of every injection molding machine screw:

1. Strict raw material control: Adopt forged 38CrMoAlA steel and high-grade alloy from certified domestic steel manufacturers

2. Multi-axis CNC thread machining: Eliminate screw pitch error and guarantee full-length concentricity

3. Complete pre-delivery testing: Internal flaw ultrasonic detection, nitriding depth inspection (0.5–0.8mm), CMM full dimensional measurement

All screws carry a 90-day free replacement warranty for manufacturing or material defects.

Engineering & Processing Troubleshooting FAQ

Q1: What causes plastic yellowing and black spots? How can a matched screw solve this issue?

A: Black carbon deposits form when molten plastic stays trapped inside rough screw gaps or worn check valves and overheats. Our plastic injection machine screw adopts full mirror polishing flow channels and optimized injection screw head with smooth runner paths, removing dead zones and realizing complete resin turnover without stagnation.

Q2: Can I install a bimetallic screw with ordinary nitrided barrel?

A: Not recommended. The high-hardness flights of bimetallic screw will scratch and wear the soft inner wall of standard nitrided barrel rapidly. For long-term stable production, adopt matched bimetallic screw & barrel sets to balance wear loss on both components.

Q3: Are customized brand-specific screws fully interchangeable with original machine parts?

A: Yes. Whether you order screw FOR HAITIAN INJECTION MACHINE, screw FOR Chen Hsong Injection Machine or screw FOR YIZUMI Injection Machine, our technical team replicates original equipment drawings or physical samples precisely. All keyway, interface thread and overall length conform to factory standards for plug-and-play replacement without equipment modification.
