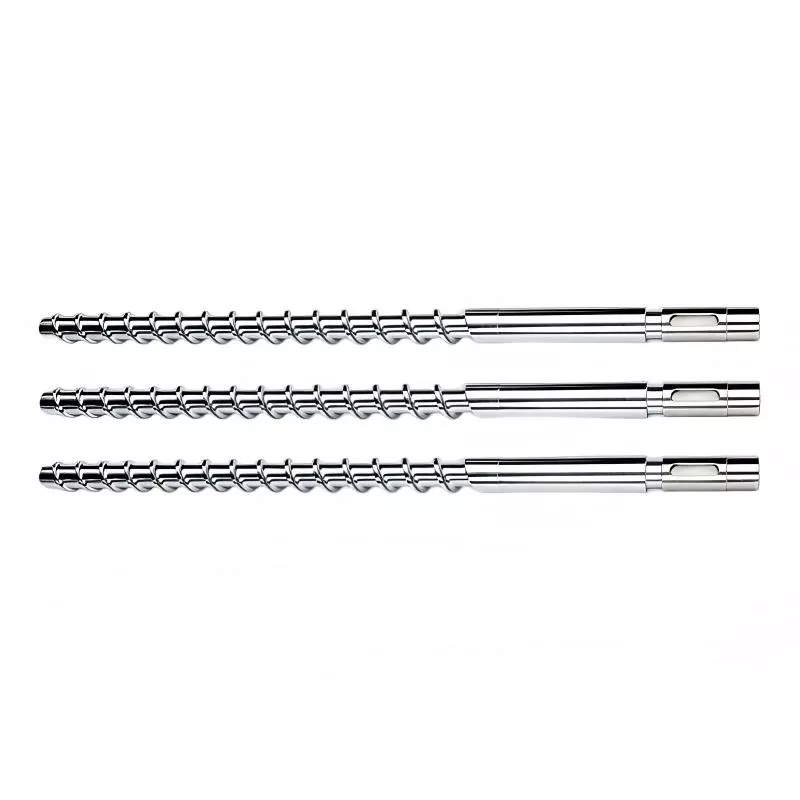

Screw for HAITIAN Injection Machine

To restore original plasticizing efficiency, purchase wholesale Screw for Haitian Injection Machine from HAPPY PLASTICS, a seasoned Chinese manufacturer. Fabricated via 5-axis CNC machining, these screws eliminate dimensional deviation and push scrap rates near zero on high-speed lines.

Restore Production Capacity with Custom Haitian Screw

Years of operation cause Haitian machines to suffer slow recovery, unstable backpressure and screw slip. The root cause is worn compression flights leading to melt backflow, rarely hydraulic or servo failure.

Install HAPPY PLASTICS’s OEM-matched Screw for Haitian Injection Machine to stabilize melt pressure and recoup lost productivity:

• Regain standard cycle speed: Restored factory compression ratio lifts recovery speed over 15% even under heavy backpressure.

• Stabilize servo load: Smooth feed sections deliver steady material intake, flattening motor current curves and avoiding burnout or costly rewinding.

• Remove flash & short shots: Consistent metering pressure guarantees uniform shot weight for flawless multi-cavity molding.

Technical Specifications of Heavy-Duty Haitian Screw

We use rigid special alloy steel instead of generic bar stock to withstand 1500 bar injection pressure without deflection. Every custom Screw for Haitian Injection Machine adheres to strict tolerances:

• Full-length coaxiality: ≤0.02 mm for concentric rotation, preventing unilateral barrel friction and flight abrasion.

• Deep ion nitriding: 0.5–0.8 mm hardened layer resists cracking under sudden high-torque startup.

• Precision check-valve clearance: 0.03–0.05 mm sliding gap blocks micro melt backflow during holding.

• High-efficiency mixing tip: Optional barrier/pin design doubles masterbatch dispersion while lowering shear heat.

Drawbacks of Universal Screws vs Custom Haitian Screw

Standard aftermarket screws fail to stabilize quality when Haitian Mars, Jupiter and Zhafir lines run fragile transparent, high-filler or high-gloss resins. Custom Screw for Haitian Injection Machine is mandatory for these tough molding scenarios:

• Thin-wall precision electronics: Thin connectors and light guides demand instant high-speed filling with zero pressure loss.

• Corrosive engineering plastics: Flame-retardant PBT, PPS and long glass fiber materials trigger metal pitting; our inert coating blocks chemical erosion.

• High-clarity optical parts: PMMA & high-molecular PC require mirror polishing to eliminate stagnant zones, black specks and discoloration.

FAQ

Q: Why do third-party replacement screws trigger frequent servo overload alarms on Haitian Zhafir all-electric machines?

A: All-electric equipment is highly sensitive to torque spikes. Mismatched screw transition profiles conflict with Haitian pressure compensation algorithms; unmelted pellets create sharp torque surges. Our Screw for Haitian Injection Machine adopts smooth gradient compression geometry to cut local shear resistance and eliminate overload trips.

Q: We operate Haitian machines from 120T to 470T. How do you guarantee precise matching without our on-site measurement shutdown?

A: No production halt or manual measuring needed. HAPPY PLASTICS maintains a full parameter database covering all 60T–4000T new and legacy Haitian models, including splines, keyway offsets and structural limits. Simply provide machine model and manufacture year from the nameplate for immediate CNC production.

Q: Our check ring jams constantly while molding glass microsphere-filled resin. How does your screw design fix this?

A: High pressure crushes glass beads into abrasive dust that clogs check ring sliding gaps and causes lockup. We boronize the entire non-return assembly for higher surface hardness and optimize relief angles. Melt flow self-flushes bead dust during each recovery stroke to stop dry-friction seizure.
