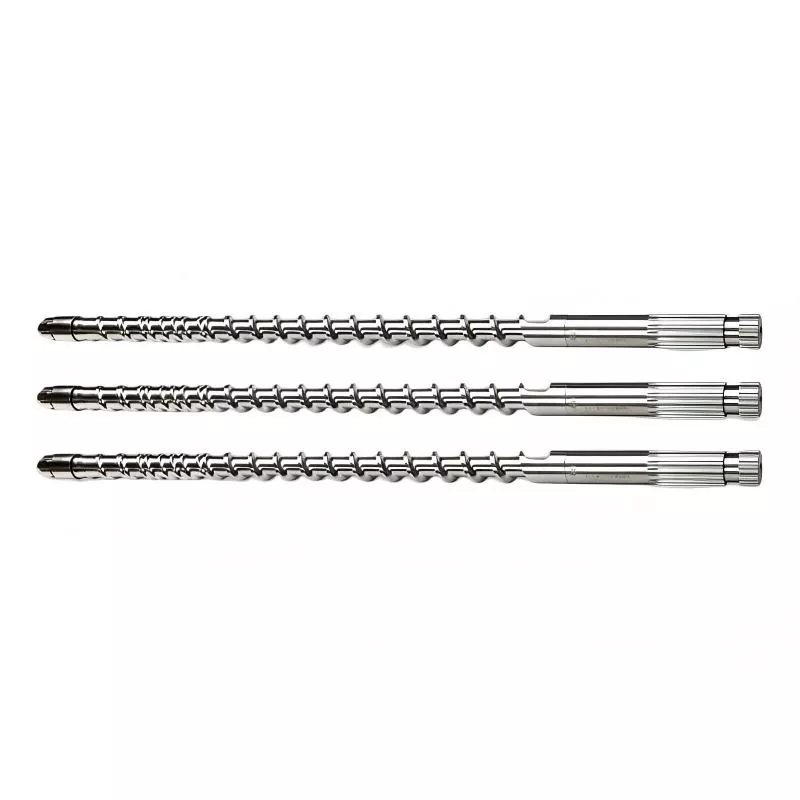

Screw for YIZUMI Injection Machine

To reclaim the original factory plasticizing throughput of your molding equipment, source a precision-matched Screw for YIZUMI Injection Machine directly from China's HAPPY PLASTICS factory. Utilizing advanced multi-axis CNC milling, our replacement screws guarantee absolute dimensional accuracy—preventing installation alignment errors and eliminating unplanned downtime caused by premature mechanical wear.

Solve Dosing and Pressure Fluctuation Issues for YIZUMI High-speed Machines

When a YIZUMI machine undergoes years of high-pressure, rapid-cycle production, operators frequently notice a slow increase in dosing times and irregular backpressure readings. This issue is rarely a hydraulic pump failure or a servo motor defect; rather, it indicates that abrasive polymer flow has scoured the screw flights, causing internal melt slippage.

Replacing with HAPPY PLASTICS OEM-matched Screw for YIZUMI Injection Machine perfectly solves core bottlenecks in high-speed injection molding:

• Restores Cyclic Consistency: By exactly matching the volumetric compression curve required by YIZUMI’s high-response servo-drive systems, the melt moves forward smoothly without slipping backward over the flights.

• Eliminates Structural Flight Erosion: Tailored flight engineering preserves structural integrity at the feed zone transition, preventing the localized pitting that causes physical resin stalling and material discoloration.

• Protect Mold and Clamping Mechanism: Homogenized melt output eliminates instantaneous injection pressure spikes, effectively preventing mold flash and reducing mechanical load on toggle clamping linkage.

Screw Upgrade & Selection Guide for YIZUMI Production Lines

Instead of choosing general standard screws blindly, modern plastic factories select matched Screw for YIZUMI Injection Machine based on actual production materials and equipment aging status to achieve cost-effective upgrades:

• The 15% Glass Fiber Threshold: When switching from pure PP to 15% glass fiber filled plastics on YIZUMI A5 and PAC series machines, ordinary nitrided screws will wear out within 120 days. Our Class-B bimetallic screw with continuous tungsten carbide overlay welding (58-64 HRC) is required for long-term stable production.

• Resolving High-Output Shear Overheating: For high-speed packaging production, our customized barrier screw is recommended. It separates solid plastic pellets from molten melt independently, reducing local shear heat and avoiding thermal degradation of heat-sensitive packaging materials.

• Compensating for Aged Barrels: If only replacing the screw while keeping the original worn barrel, standard-size screws are not applicable. We provide oversized screw customization (outer diameter: +0.05mm ~ +0.12mm) to restore standard matching clearance without replacing the whole barrel.

Technical Standards and Machining Rigor

To ensure this Screw for YIZUMI Injection Machine runs straight and true under extreme continuous torque, we rely on high-integrity metallurgies and strict machining benchmarks:

• High-Clarity Mirror Finishing: The entire flight and root profile undergoes high-mirror polishing to reduce polymer friction, making material purging and color changeovers significantly faster.

• Strict Straightness Thresholds: Total axial runout is controlled down to 0.02 mm over the entire length, stopping lopsided contact and premature barrel scouring.

• Advanced Nitriding Treatment: Deep and uniform nitriding treatment forms a dense hardened surface layer above 950 HV, providing reliable anti-corrosion performance against corrosive flame-retardant additives.

Manufacturing Process: From Design to CNC Verification

HAPPY PLASTICS provides targeted engineering customization instead of universal standard products. Each Screw for YIZUMI Injection Machine undergoes complete standardized production procedures:

· Material Analysis: We assess your processed resin’s chemical composition—be it abrasive glass-fill or corrosive flame-retardant additives.

· Precision CNC Milling: Utilizing five-axis CNC equipment, we carve the specific pitch and flight depths designed to optimize your machine's L/D ratio.

· Heat Treatment & Surface Cladding: Depending on the application, we apply either high-pressure nitriding or specialized bimetallic welding to reinforce wear-prone zones.

· Final Dimensional Inspection: Every unit passes a 15-point verification, ensuring zero interference with your barrel or nozzle assembly.

FAQ

Q: We use old YIZUMI injection machines. Can you guarantee full compatibility without original OEM drawings?

A: We have a complete parameter database covering all new and legacy YIZUMI models, including spline size, coupling dimension and overall shaft length. You only need to provide machine model and manufacture year on the nameplate, and we can start accurate production without original drawings.

Q: Our YIZUMI machines produce heavy black spots when molding transparent acrylic and PC materials. How does your screw solve this issue?

A: Black spots and carbon deposits are caused by material stagnation and overheating inside screw dead zones. Our Screw for YIZUMI Injection Machine adopts smooth gradient compression structure plus ultra-mirror finish, realizing continuous first-in first-out melt flow and eliminating material carbonization thoroughly.

Q: What advantages does bimetallic coating have compared with ordinary nitrided screws?

A: Single nitrided screws own high surface hardness but poor toughness, which is easy to crack and peel under strong impact from glass fiber fillers. Our bimetallic coating balances high hardness and impact resistance, preventing micro chipping of screw flights and avoiding sudden screw failure during long-term harsh production.

Q: Can you customize screws for modified and re-bored YIZUMI barrels?

A: Yes. We support full non-standard customization for modified barrels. You only need to provide actual inner diameter data of the modified barrel, and our engineers will calculate the optimal matching clearance to ensure perfect operation with modified equipment.
