High Quality Single Screw For Extrusion Machine

As a specialized, China-based single screw for extrusion machine factory, HAPPY PLASTICS integrates advanced metallurgy with precise engineering to stabilize melt linear flow. Since 1990, our manufacturing facility has developed custom-tailored flight profiles designed to steady head pressures, eliminate volumetric output surging, and lower energy consumption across continuous pipe, sheet, and profile production lines.

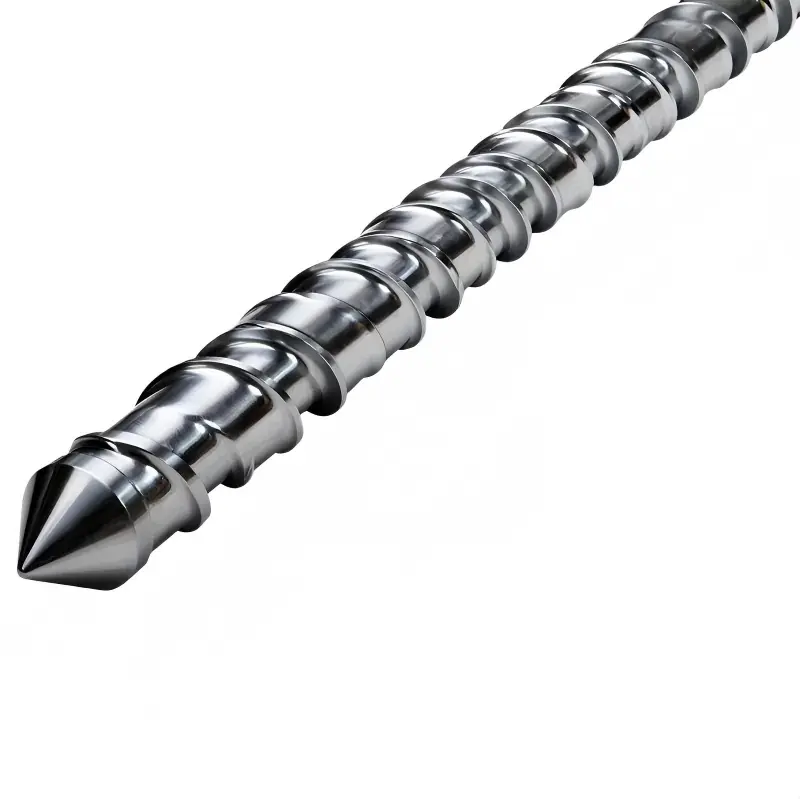

How Does a Specialized Single Extrusion Screw Improve Output Consistency?

A high-performance single screw for extrusion machines acts as the primary mechanical driver for solid polymer conveying, uniform melting, and high-pressure pumping. Unlike multi-screw systems that rely on aggressive intermeshing shear, a standalone single extrusion screw builds pressure via predictable viscous friction against the barrel's inner wall. The thermodynamic transition must be perfectly balanced to prevent localized polymer degradation.

When processing highly viscous compounds like polyolefins or thermally sensitive engineering plastics, an outdated or universally designed screw will cause friction-induced heat spikes, leading to uneven melt viscosity. By adjusting the specific flight depth and implementing localized barrier mixing elements, our custom-engineered assemblies stabilize output flow rates, reducing sheet or wall thickness deviations by up to 18% during high-speed production runs.

What are the Main Metallurgical Differences Between Standard Extrusion Linings?

When auditing prospective single screw for extrusion machine suppliers, production managers must look beyond surface nitriding depths. Choosing the correct material metallurgy is critical for plant floor ROI, as the structural lining configuration determines the exact maintenance lifecycle under continuous mechanical loads.

Which Specialized Extrusion Components Does HAPPY PLASTICS Factory Manufacture?

HAPPY PLASTICS operates an ISO9001-certified production workshop outfitted with specialized CNC thread-milling and deep-hole boring rigs. We deliver customized, drop-in replacement parts engineered to match exact original equipment parameters.

Material-Specific Configurations

Our targeted component lines are engineered to handle distinct resin behaviors, from corrosive powder compounds to micro-scale specialty profiles:

• PVC Single Screw Barrel: Specifically formulated to process unplasticized or rigid PVC powder compounds without acid-induced pitting. Every tailored bimetallic barrel features deep gas nitriding and heavy chrome plating along the entire channel surface to repel corrosive hydrochloric gas emissions during low-shear plasticization.

• Mini Extruder Screw: Precision-machined for lab-scale lines, medical catheter manufacturing, and filament co-extrusion setups. Ranging from Ø12 mm to Ø25 mm, each specialized assembly delivers highly precise, pulse-free micro-dosing for strict tolerance control.

High-Efficiency Geometries

To optimize downstream compounding quality, our product line offers customized flight architectures, including:

• Maddock Mixing Elements: Features specialized shearing blocks that break down un-melted resin gels without raising the core melt temperature.

• Pin-Barrel Configurations: Implements stationary pins that disrupt laminar flow streams, making it the ideal choice for high-speed rubber or elastomer processing.

How to Choose a Single Extrusion Screw for High-Filler Compounding?

Selecting an efficient single extrusion screw requires matching your screw’s base metallurgy directly to your compound's filler weight percentage. Processing resins with high concentrations of calcium carbonate, wood flour, or glass fibers will quickly erode standard nitrided steel flights.

If your production line runs compounds with more than 15% glass fiber or abrasive mineral additives, you should bypass standard designs completely. For these demanding setups, implementing a bimetallic configuration paired with a matching bimetallic barrel liner provides a hard, wear-resistant barrier that maintains tight radial clearances, ensuring reliable back-pressure containment for years of continuous service.

How to Prevent Common Output Surging Failures on Your Extrusion Floor?

Procuring heavy-duty single screws for extrusion machine components allows international plastics processors to solve output surging and pressure fluctuations caused by unstable material conveying inside the initial feed section. If solid pellets slide along the barrel surface instead of moving forward, the mass flow rate down the line drops sharply, resulting in uneven product dimensions.

To eliminate this processing bottleneck, our customized assemblies can be paired with an axial-grooved feed throat liner. This mechanical upgrade increases material-to-barrel friction, ensuring positive, consistent solid-bed conveying. Additionally, ensuring that your feed throat cooling water jacket remains clean and fully operational keeps the raw pellets from melting prematurely inside the hopper inlet, completely preventing material bridging.
