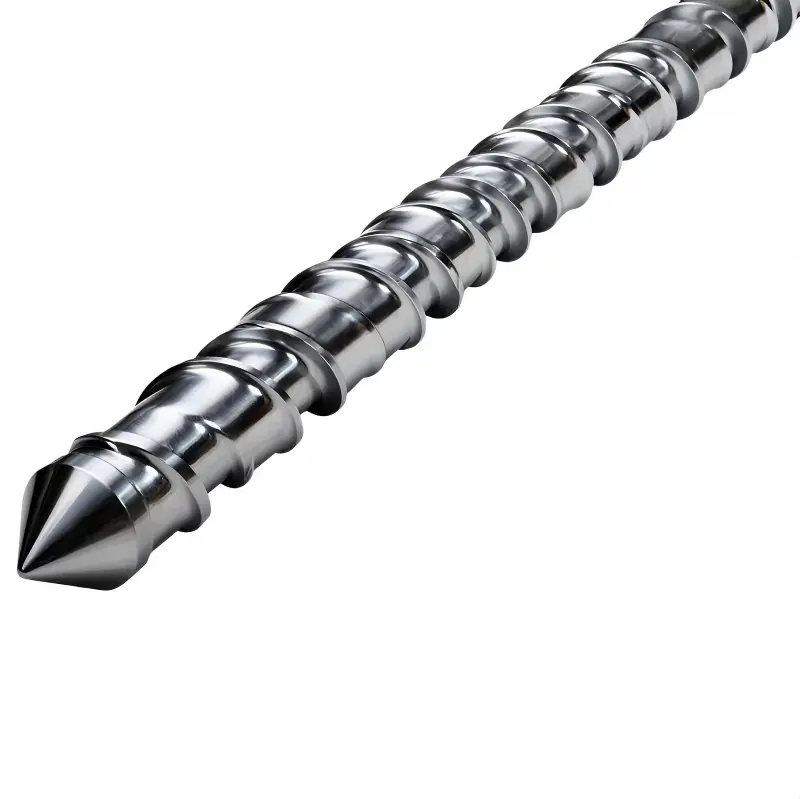

PVC Single Screw Barrel

Procuring from an experienced China Pvc Single Screw Barrel manufacturer and supplier allows extrusion plants to maintain dimensional stability over extended continuous production. HAPPY PLASTICS integrates precision internal honing and advanced centrifugal bimetallic casting to deliver matched screw and barrel sets that withstand heavy calcium carbonate loading and eliminate material degradation black and yellow spots.

Technical Specifications & Manufacturing Precision

To prevent rapid mechanical wear and chemical corrosion during long-term high-temperature PVC extrusion processing, HAPPY PLASTICS Pvc Single Screw Barrel adopts ultra-strict machining tolerance standards:

• Base Material: High-quality 38CrMoAlA alloy steel, processed by vacuum degassing treatment and 72-hour deep gas nitriding, with effective hardened layer depth reaching 0.5mm-0.7mm.

• Screw Surface Alloy Reinforcement: Screw flight crests are welded with 2.0mm thick nickel-based alloy layer mixed with tungsten carbide particles, surface hardness up to 58-62 HRC.

• Barrel Bimetallic Liner: The inner wall of barrel adopts centrifugal casting Fe-Cr-Ni-B alloy lining with thickness of 2.5mm-3.0mm, possessing excellent anti-scouring and anti-abrasion performance.

• High Precision Concentricity: The concentricity between screw outer circle and screw root is controlled within 0.015mm, avoiding uneven clearance friction and abnormal equipment wear.

How Do We Adapt Screw Designs to Varying PVC Formulations?

Universal standard extruder screw and barrel cannot adapt to melt changes caused by different PVC stabilizer formulas. Customizing exclusive Pvc Single Screw Barrel according to your actual production formula effectively avoids material thermal degradation and early parts failure:

High-Filler Rigid PVC Formulations

High-content calcium carbonate mineral fillers will severely scour and wear screw compression section flights. We adopt full-surface bimetallic cladding reinforcement for screw flights, and match full tungsten carbide lined barrel to keep stable extrusion clearance and long-term stable production performance.

PVC Blends with Liquid Tin

New eco-friendly stabilizers will change the adhesion between PVC melt and metal surface, easily causing melt sticking to screw root and carbonization. Our team optimizes screw flight pitch structure, and adds 0.05mm+ thick hard chrome plating on screw surface to realize smooth melt demoulding and prevent material sticking.

Step-by-Step Installation

Improved installation and debugging is the main cause of early failure of bimetallic lining. Follow the standardized steps below to install and debug new Pvc Single Screw Barrel:

1. Gearbox Alignment Detection: Before screw installation, fix the barrel on the gearbox flange, use laser aligner to detect axial deflection, and ensure the error is less than 0.03mm.

2. Drive Spline Maintenance: Clean residual dirt inside gearbox splines thoroughly, and coat high-temperature anti-seize copper grease to avoid shaft bite under high extrusion torque.

3. Cold Machine Clearance Inspection: Put the screw into the barrel completely, manually rotate the gearbox spindle for 2 full circles, check no jamming point and no metal friction abnormal sound.

4. Thermal Expansion Hot Tightening: Heat all barrel zones to 150℃ and keep constant temperature for 40 minutes. Tighten barrel flange bolts according to standard torque while hot to offset thermal expansion clearance deviation.

What Process Signals Indicate It Is Time to Replace Your Hardware?

Production operators can judge the wear degree of screw and barrel through real-time extrusion process data, and replace accessories before finished product quality deteriorates:

• Continuous Drop in Extrusion Head Pressure: Under fixed motor speed, the head pressure decreases permanently, which means screw flight is worn, radial clearance increases and melt backflow slipping occurs.

• Vacuum Vent Material Overflow: PVC melt surges out from vacuum exhaust port, mostly caused by serious wear of screw metering section, which breaks the stable forward conveying balance of melt.

• Unstable Motor Working Current: Fluctuating current under stable feeding speed indicates local screw jamming or shaft bending deformation, which needs straightness inspection and maintenance immediately.

Technical FAQ

Q: Why do yellow streaks appear on PVC pipes right after restarting the extruder after temporary shutdown?

A: Yellow streaks are caused by long-term material stagnation and thermal decomposition inside screw dead zones. After standard screw wears, the clearance becomes larger, forming melt retention areas on the rear side of flights, and materials will carbonize and turn yellow during shutdown. Our customized Pvc Single Screw Barrel adopts gradient self-cleaning flight structure to realize full melt flow without dead zones and completely solve yellow line defects.

Q: Our rigid PVC profile production line needs frequent color switching, how to shorten purging time?

A: Common nitrided screw surface will produce micro pits after long-term acid corrosion, leading to pigment residue inside pits. We provide ultra-mirror polishing treatment (Ra ≤ 0.15μm) matched with chrome/nickel alloy surface cladding. The low-friction smooth surface avoids melt adhesion, greatly improving color changing and purging efficiency.

Q: How to judge whether the old barrel can be honed and matched with oversized screw, or needs direct replacement?

A: Use inner diameter dial indicator to detect the inner wall wear of barrel compression section and metering section. If the maximum wear depth is less than 0.5mm, the barrel can be honed uniformly. We can customize matched oversized Pvc Single Screw Barrel assembly to restore original standard matching clearance, saving the cost of full barrel replacement.
