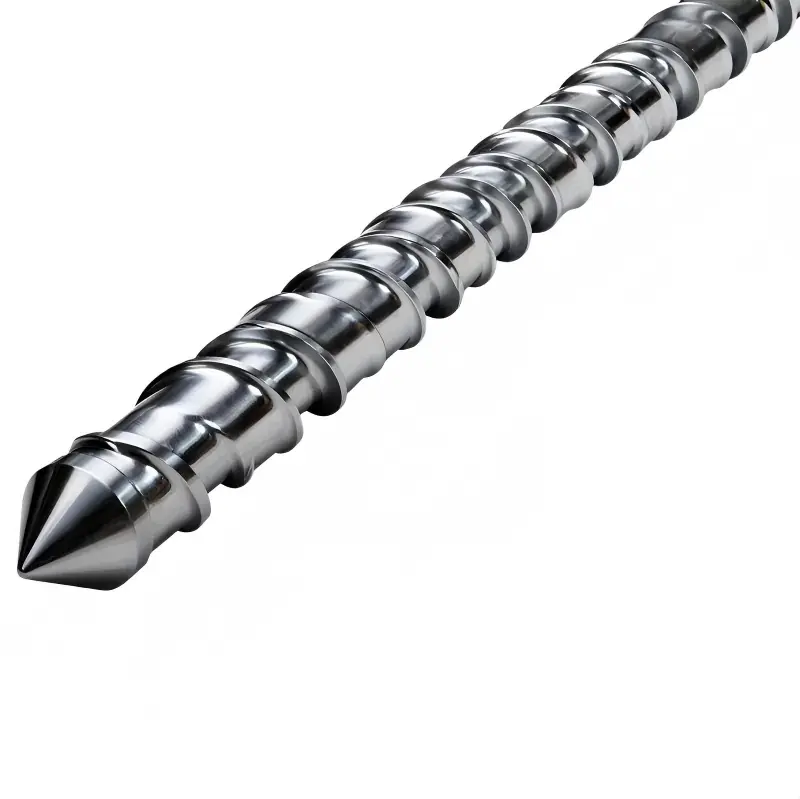

Single Extrusion Screw

Partnering with a specialized Single Extrusion Screw manufacturer in China ensures your production lines maintain maximum linear throughput without premature mechanical decay. HAPPY PLASTICS utilizes precision multi-axis CNC thread-milling machines and advanced bimetallic surfacing to deliver durable components that minimize material shearing, cut power usage, and eliminate un-melted resin spots during continuous manufacturing.

What Core Geometries and Performance Parameters Are Available?

To ensure drop-in compatibility with your existing extrusion plant, HAPPY PLASTICS processes all hardware according to standardized international mechanical metrics. Our production line focuses on individual sizing to meet your exact pressure requirements:

• Diameter Scale: Fabricated across a broad operational range from 20mm up to 300mm for any standard Single Extrusion Screw model.

• Length-to-Diameter (L/D) Ratios: Custom tailored from 15:1 to 45:1 based on resin degassing requirements.

• Concentricity Limits: Total indicator runout is maintained under 0.015mm across the total length to eliminate physical barrel gouging.

• Surface Finishes: Micro-polished surfaces down to Ra ≤ 0.15μm to prevent polymer friction and build-up.

4-Step Custom Design and Manufacturing Process

General-purpose standard screws easily lead to uneven plasticization. HAPPY PLASTICS designs every Single Extrusion Screw via standardized engineering procedures tailored to your unique plastic formula:

1. Rheological Analysis

Our engineering team analyzes your material Melt Flow Index (MFI), filler content and target output to calculate the optimal compression ratio.

2. CNC Thread Milling

Multi-axis CNC milling machines process screw flights to maintain consistent channel depth and avoid uneven compression zones.

3. Alloy Overlay Welding

Adopt automatic PTA plasma surfacing to weld nickel-based or tungsten carbide alloy layers on flight crests and high-wear areas.

4. Dynamic Balancing & Mirror Polishing

The screw is polished to mirror finish (Ra ≤ 0.15μm) and undergoes dynamic balancing treatment to prevent shaft bending and high-speed torque vibration under high RPM.

Why Purchasing Managers Prefer HAPPY PLASTICS?

Sourcing cheap generic screws often results in fast abrasion and unplanned production downtime. HAPPY PLASTICS optimizes three core structural designs to lower your long-term production cost:

Full-Stage Quality Inspection Standards

All finished Single Extrusion Screw must pass complete multi-process quality inspection before packing and international shipment:

• Ultrasonic Non-Destructive Testing: Every raw forged steel bar is scanned to detect internal microcracks, ensuring the substrate can withstand extreme high torque without fracture.

• Nitriding Depth Inspection: Batch test samples are processed synchronously to verify the effective hardened nitriding layer reaches 0.5–0.7mm, stable long-term wear resistance.

• CMM Coordinate Measurement: Automatic three-dimensional probes scan full flight profiles to guarantee radial clearance perfectly matches your supporting barrel.

FAQ

Selecting the proper Single Extrusion Screw configuration requires answering common application questions regarding specific resin behavior and physical configurations:

Q: Our raw material contains over 20% recycled plastic flakes, what structural adjustments do you make to the screw?

A: Recycled plastic flakes feature irregular shapes and low bulk density, easily causing feeding bridging and unstable melt surging at the die. We widen screw pitch and increase flight depth of the feeding section by 18%. This upgrade improves material feeding capacity and forms stable extrusion pressure continuously.

Q: We process heat-sensitive plastics that are prone to thermal decomposition and burning. How do you eliminate material stagnation dead zones?

A: Material carbonization happens when resin accumulates at sharp structural transitions or rough machined surfaces on screw flights. We design smooth rounded transitions between screw root and flights, and perform full-channel mirror polishing. The melt flows in complete first-in first-out circulation across all heating zones without retention.

Q: We do not retain original equipment blueprints, can your engineering team reverse-engineer and produce matched screws?

A: Yes. You can send the worn old screw to our testing workshop, or follow our step-by-step measuring guide with digital calipers to record key dimensions. We will sort out spline specifications, screw pitch and overall length data, then draw 3D CAD drawings for your confirmation before formal CNC production.

Warranty Service

Comprehensive protective packaging avoids product deformation and rust during long-distance sea transportation:

• Anti-Rust Packaging Process: All finished screws are coated with industrial anti-rust oil, wrapped with multi-layer moisture-proof plastic film, and fixed inside IPPC certified export wooden cases with foam buffer lining to prevent bending during transit.

• Standard Factory Warranty: 12-month full structural warranty against manufacturing defects and abnormal cracking under standard production parameters.

• Complete After-Sales Support: Each order is attached with official full inspection report, material composition certificate and detailed installation operation video for quick on-site commissioning.
