Professional Injection Molding Machine Barrel Manufacturer
Founded in 1990, HAPPY PLASTICS is a professional China manufacturer of injection molding machine barrel. We develop and produce high-precision barrels for injection, extrusion, and rubber machinery, covering four core product lines: barrel for HAITIAN injection machine, barrel for Chen Hsong injection machine, barrel for YIZUMI injection machine, and complete inject mold screw barrel systems. We supply standard wholesale units and drawing-based customized setups, solving complex plasticizing issues for global plastic manufacturers.
What is an injection molding machine barrel, and what core function does it undertake?
An injection molding machine barrel is a critical, wear-resistant pressure vessel that houses the rotating injection screw. It serves as the primary thermodynamic chamber where raw polymer granules are converted into a homogenous, flowable melt ready for high-pressure cavity injection.
Why Barrel Quality Matters
The machining accuracy, inner wall hardness, and structural design of the cylinder directly determine melt uniformity, injection pressure stability, and final product yield. Poorly manufactured components cause persistent dimensional defects and accelerate screw flight wear. To prevent these vulnerabilities, all HAPPY PLASTICS assemblies utilize an integral forging molding technology without welding joints, effortlessly adapting to long-term high-temperature and high-pressure continuous production environments.
What are the advantages of HAPPY PLASTICS injection molding machine barrels compared with other suppliers?
|
Comparison Item |
HAPPY PLASTICS Manufacturing Standards |
General Third-Party Suppliers |
|
Production Infrastructure |
Direct factory founded in 1990; independent workshop and complete automated processing lines. |
Most are trading agents or small outsourcing workshops with extra resale markups. |
|
Quality Control System |
ISO9002 certified; every unit undergoes strict hardness, coaxiality, and high-pressure simulation testing before delivery. |
Simple random visual inspection only; lacks deep internal bore or wear-resistance testing. |
|
Customization Capacity |
Full custom tailoring available; supports production according to customer technical drawings and physical samples. |
Limited standard stock sizes only; difficult to adjust alloy thickness or flange dimensions. |
|
Technical Support |
Dedicated engineering team providing remote troubleshooting for molding defects induced by mismatched plasticizing units. |
Only basic product sales service; no professional guidance for process optimization or barrel matching. |
|
Manufacturing Craft |
One-piece integral forging + optional bimetallic alloy lining or precision deep gas nitriding. |
Ordinary multi-piece splicing or thin nitrided layers; poor wear resistance under continuous high-load runs. |
How to select a matched injection molding machine barrel for different brands of injection machines?
Universal cylinders cannot fit all machinery brands, as each manufacturer utilizes unique heating band layouts, flange dimensions, and screw compression ratios. HAPPY PLASTICS designs brand-exclusive components for mainstream injection equipment, supporting plug-and-play installation with zero modifications required.
Barrel for HAITIAN Injection Machine
Optimized for high-speed automated systems, this barrel for HAITIAN injection machine features upgraded inner hole coaxiality and a deepened nitriding layer. It maintains stable plasticizing performance during 24h continuous operation, effectively fixing short shot and bubble defects. It is the premier replacement choice for standard Haitian machinery.
Barrel for Chen Hsong Injection Machine
Our custom barrel for Chen Hsong injection machine adopts a gradual compression inner cavity, which cuts excessive shear heat during plastic melting and avoids material yellowing or thermal degradation. It perfectly matches energy-saving injection systems, making it ideal for precision electronic housings and thin-wall packaging products.
Barrel for LKIMM Injection Machine
A heavy-duty component customized for large-tonnage LKIMM machines. Equipped with a thick, centrifugal cast bimetallic lining, this barrel for LKIMM injection machines delivers outstanding wear and pressure resistance. It fits the long-term production of glass-fiber-reinforced plastics, significantly reducing spare part replacement frequencies.
Inject Mold Screw Barrel System
Replacing a single cylinder on a worn machine often leads to mismatched clearances between the old screw and the new bore. Our integrated Inject Mold Screw Barrel system adopts a matched synchronous design for both components. This ensures a highly uniform melt seal and stable injection pressure, cutting product defect rates efficiently.
What common injection defects are caused by a defective injection molding machine barrel?
Most common injection molding defects are caused by abnormal injection molding machine barrel operation. We list typical faults and direct solutions for quick troubleshooting:
• Uneven plastic melting: Caused by poor coaxiality and uneven heating zone design inside the cylinder. Solution: Replace with a high-precision integral forged barrel featuring a balanced thermodynamic profile
• Fast inner wall wear: Occurs when processing abrasive glass-fiber-filled materials inside a standard nitrided bore. Solution: Upgrade to a bimetallic wear-resistant alloy lining for long-term mechanical defense.
• Plastic burning and yellowing: Triggered by excessive shear friction and stagnation points. Solution: Switch to a low-shear barrel FOR Chen Hsong Injection Machine to reduce localized material overheating.
• Fluctuating injection pressure: Caused by inner wall deformation and clearance deviations of a worn assembly. Solution: Replace with a brand-specific matched barrel timely to restore volumetric injection stability
What core strengths does HAPPY PLASTICS Injection molding machine barrel own compared with peer products?
Backed by 30+ years of manufacturing experience and an ISO9002 quality control system, our industrial components deliver distinct advantages over ordinary market alternatives:
Strict Full Dimensional Inspection: Every finished unit must pass ultra-precise coaxiality tests, Rockwell hardness detection, surface roughness verification, and high-temperature aging simulation tests before leaving our facility.
Professional Pre-Sales Technical Matching: Our technical team provides free configuration guidance based on your machine brand, processed plastic resin, and targeted cycle times, helping you select the exact part geometry required.
Targeted Customized Process: We support non-standard customization based on your local workshop drawings or physical wear samples, covering custom flange sizes, heating band groove positions, and alloy layer thickness modifications across all product series.
Professional After-Sales Technical Debugging: We provide remote process debugging guidance to solve molding defects caused by mismatched or worn components, helping your operators optimize production parameters and maximize daily output.
What industrial applications are suitable for HAPPY PLASTICS Injection molding machine barrel?
Each processing layout targets specific production scenarios and material profiles. Match your machinery model according to the guidelines below:
• barrel FOR HAITIAN INJECTION MACHINE: Daily necessities, household plastic products, general industrial plastic parts mass production
• barrel FOR Chen Hsong Injection Machine: Precision electronic housings, food packaging containers, thin-wall transparent plastic products
• barrel FOR LKIMM Injection Machine: Automotive interior and exterior plastic parts, thick-wall industrial accessories, high-filler modified plastic products
• Inject Mold Screw Barrel System: High-precision automated production lines requiring overall plasticizing system optimization
HAPPY PLASTICS supports both bulk wholesale orders and drawing-based customized engineering. Contact our technical sales division today to get targeted selection advice and professional plasticizing solutions for your factory floor.
- View as
Plastic Injection Screw And Barrel
Global plastic manufacturers opt to buy Plastic Injection Screw And Barrel matched assemblies from HAPPY PLASTICS to resolve inconsistent plasticization and premature barrel abrasion issues. Constructed as an integrated bimetallic system, this unit streamlines uniform melt conveyance and cuts finished part reject rates by 15% when processing high-viscosity polymer compounds.
Inject Mold Screw Barrel
For global procurement managers seeking to buy Inject Mold Screw Barrel assemblies from reliable Chinese manufacturers, HAPPY supplies premium heavy-duty bimetallic solutions adapted to harsh continuous injection molding working conditions. Fabricated with high-grade alloy steel, this integrated screw and barrel assembly stabilizes melt pressure, improves overall abrasion resistance against glass fiber fillers, cuts unplanned production downtime effectively, and guarantees consistent production of high-precision molded parts.
Barrel for YIZUMI Injection Machine
With years of experience in international collaboration, HAPPY PLASTIC specializes in manufacturing core components for injection molding machines, such as our Barrel for YIZUMI Injection Machine, and is dedicated to delivering high-standard, high-performance solutions to the global market. We have gained trust in the international market by adopting advanced production techniques and implementing a strict quality management system.

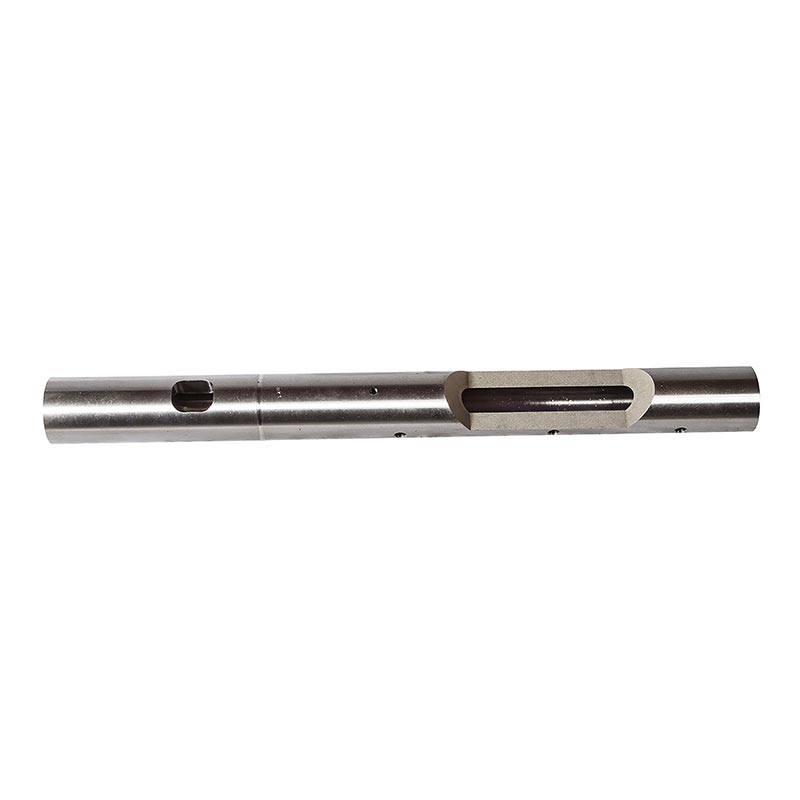

Barrel for HAITIAN Injection Machine
When looking to buy barrel FOR HAITIAN INJECTION MACHINE components from China, procurement managers choose HAPPY. Made of premium bimetallic alloy steel, this barrel eliminates pressure fluctuations, resists glass fiber abrasion, reduces factory downtime, and secures high-precision molded parts.

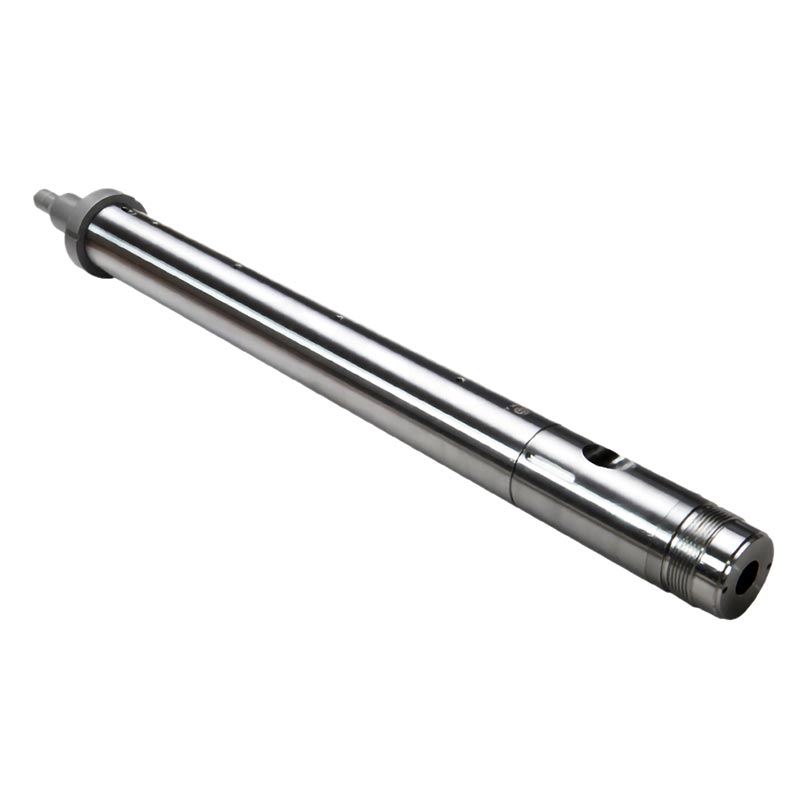

Barrel for Chen Hsong Injection Machine
For global injection facilities planning to buy barrel FOR Chen Hsong Injection Machine components from China, HAPPY delivers heavy-duty bimetallic solutions. This replacement part prevents wear from abrasive engineering resins, stabilizes melt pressure, and helps manufacturing plants minimize unexpected molding downtime.
As a reliable Injection Molding Machine Barrel manufacturer and supplier in China, we have our factory. If you want to buy quality and durable products, please contact us.
