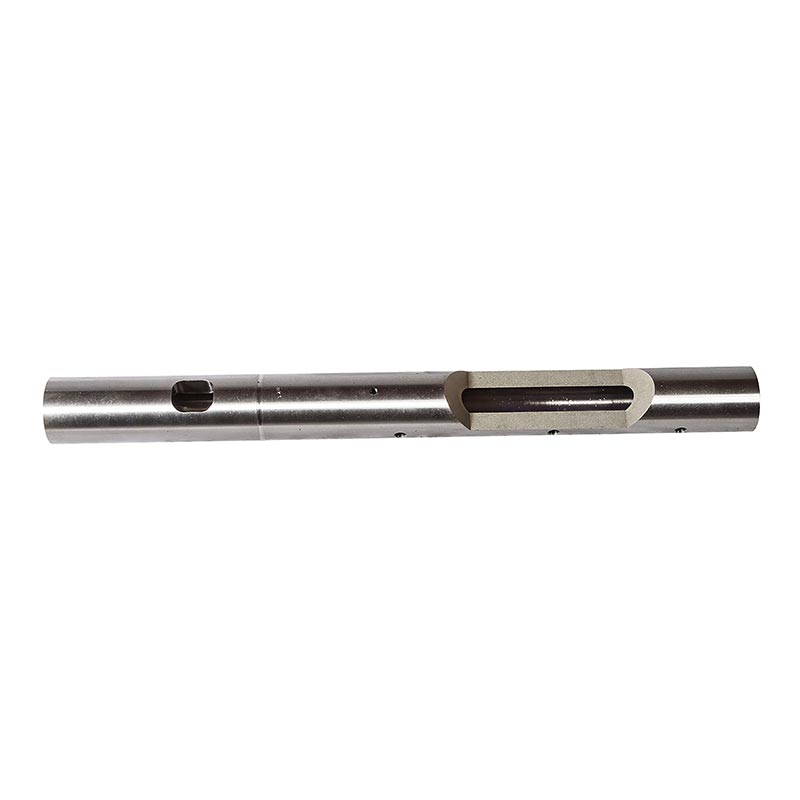

Barrel for HAITIAN Injection Machine

To optimize complex molding lines, a wholesale barrel FOR HAITIAN INJECTION MACHINE from the HAPPY factory is the ideal solution. Our ISO9002 certified facility applies deep nitriding treatment to achieve exact dimensional alignment. This design stabilizes raw material mixing, ensures uniform heating, and solves defects in finished products.

Industrial Application Scenarios

Standard nitrided barrels wear out rapidly when processing high-fill, highly abrasive, or corrosive resins. The barrel FOR HAITIAN INJECTION MACHINE manufactured by HAPPY is specifically engineered to provide wear protection against the following production pain points:

• Modified Glass-Fiber Automotive Parts Injection: Designed for the continuous processing of modified nylon containing 30%–50% glass fiber (e.g., automotive intake manifolds, engine valve covers). The high-hardness alloy layer resists glass fiber scouring on the inner wall, extending service life by over 35% compared to standard nitrided barrels.

• High-Precision Electronic Connectors: Target application for multi-cavity, thin-wall high-pressure injection molding (such as LCP or PBT connectors). The barrel utilizes tight temperature control matching to reduce flashes, short shots, and dimensional drifting caused by uneven melt temperatures, lowering the defect rate.

• High-Acid Corrosive Plastics Processing: When molding plastics with added flame retardants, PVC, or fluoropolymers, the plastic decomposes under heat to release highly corrosive gases. The specialized alloy layer blocks acid corrosion, preventing inner wall peeling.

Technical Materials & Process Parameters

To ensure absolute dimensional compatibility with the original specifications of various series and tonnages of Haitian injection molding machines (such as Mars, Jupiter, etc. series), we manufacture according to the following quantitative process standards:

Why Choose HAPPY? What Actual Problems Does It Solve?

Established in 1990, HAPPY does not rely on exaggerated modifier words to attract customers. Instead, we use specific machining quality to solve your on-site downtime losses:

Solves the Problem of Short Lifespan in Standard Nitrided Layers

Low-cost aftermarket parts usually undergo only shallow nitriding, and the clearance will exceed standards within half a year when processing glass fiber. HAPPY applies a centrifugal casting process on the inner wall of the barrel FOR HAITIAN INJECTION MACHINE, fully fusing tungsten carbide (WC) or nickel-based/cobalt-based alloys into the substrate. This thick alloy layer maintains dimensional stability even when running high-glass-fiber resins continuously, reducing the frequency of machine shutdown for barrel replacement by 70%.

Solves the Problem of Screw Seizure and Breakage Caused by Barrel Deformation

If the heat treatment stress of the barrel is not released or the straightness exceeds the standard, the screw will directly collide with the inner wall of the barrel during high-speed injection. Through multiple stress-relief heat treatments and processing with precision deep-hole boring machines and horizontal honing machines, we ensure the full-length straightness is less than 0.02 mm. The precise clearance fit not only prevents melt backflow and stabilizes injection pressure but also protects the screw from breaking due to abnormal lateral forces.

Provides On-Demand Customized Plasticizing Compression Design

In response to the shear heat sensitivity of different raw materials, our engineers adjust the geometric parameters of the feeding section and compression section of the barrel based on the specific material you process (such as PC light guide plates, MIM powder metallurgy, or ordinary PP). This ensures uniform heat conduction and avoids plastic yellowing or black spots caused by localized overheating.

Customization Process

Every single barrel FOR HAITIAN INJECTION MACHINE order undergoes standardized production control to ensure it is ready for immediate use upon arrival at your factory:

1. Drawing Replication & OEM Verification: Based on original Haitian measuring drawings or old parts samples provided by the customer, we perform a 1:1 dimensional double-check, strictly guaranteeing zero error in positioning pin holes, heating band slots, and threaded connection sizes.

2. Flaw Detection: Ultrasonic non-destructive flaw detection is performed both after conditioning and after casting to eliminate hidden dangers of internal pores or cracks.

3. Standard Rust-Proof Export Packaging: The surface is coated with heavy-duty anti-rust oil, wrapped with high-density vacuum film air cushion, and packed in customized fumigation-free reinforced wooden cases to prevent moisture and impact during cross-border sea transportation.

FAQ

Q1: Can this barrel be directly installed on Haitian Mars and Jupiter series injection machines without modification?

A: Yes. We manufacture strictly based on Haitian original OEM dimensional drawings. All positioning pin holes, heater grooves and connecting threads fully match original equipment standards, realizing plug-and-play installation without secondary machining.

Q2: What processing materials need to select the bimetallic lining version of the barrel?

A: It is recommended to choose bimetallic lining if you process 30%–50% glass fiber reinforced PA, flame-retardant PVC or corrosive engineering plastics. The alloy lining effectively slows inner wall abrasion and acid corrosion.

Q3: Why can this barrel avoid frequent melt backflow and unstable injection pressure during continuous production?

A: Its inner bore straightness is controlled within ≤0.02 mm per meter via precision deep-hole boring and honing. The precise clearance fit between screw and barrel locks melt pressure steadily, and our thick alloy protective structure extends the service life of this barrel FOR HAITIAN INJECTION MACHINE by over 35%.
