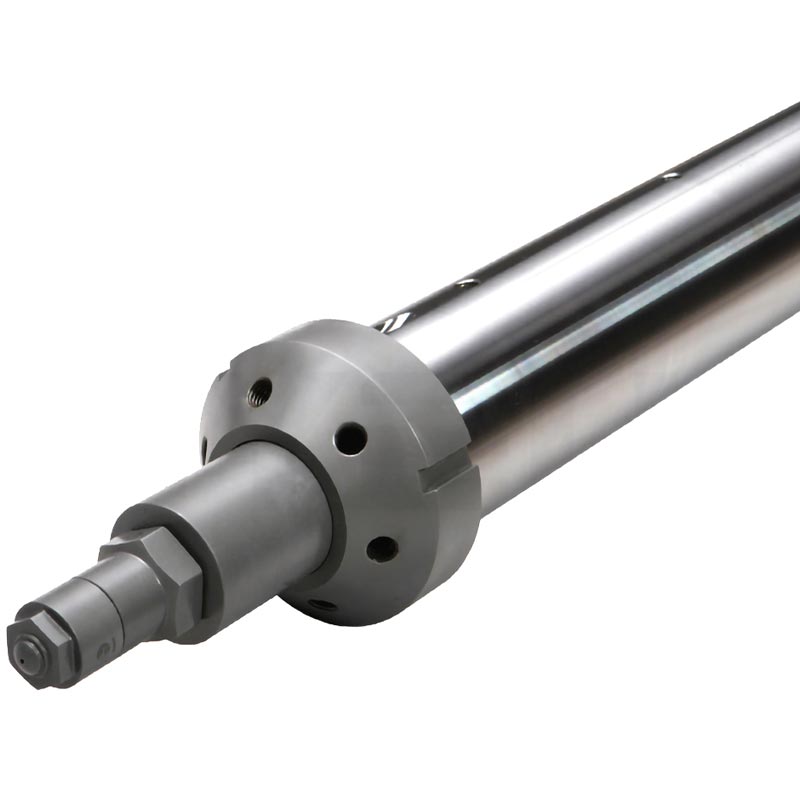

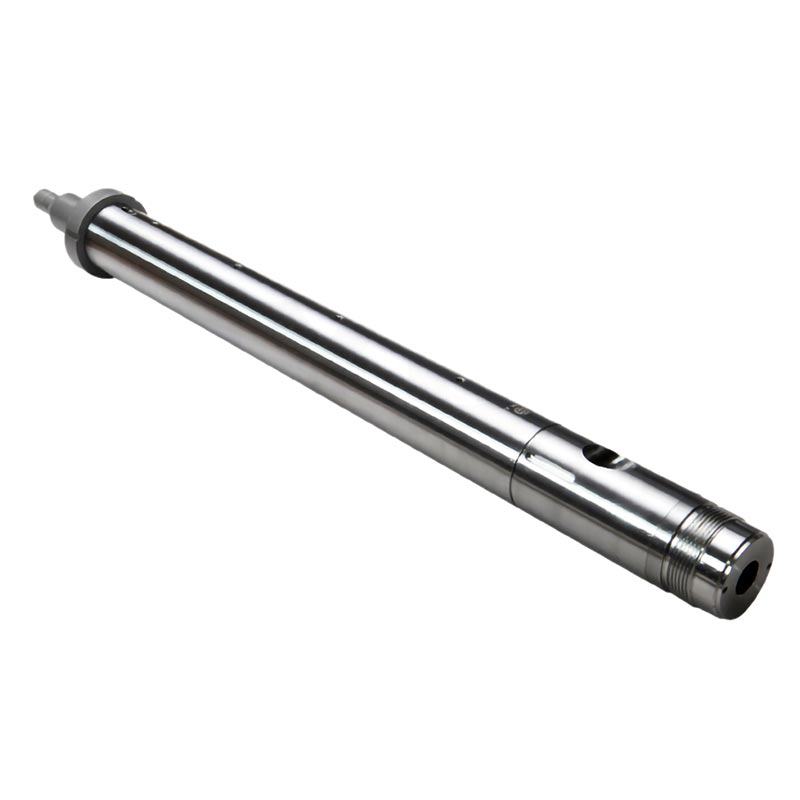

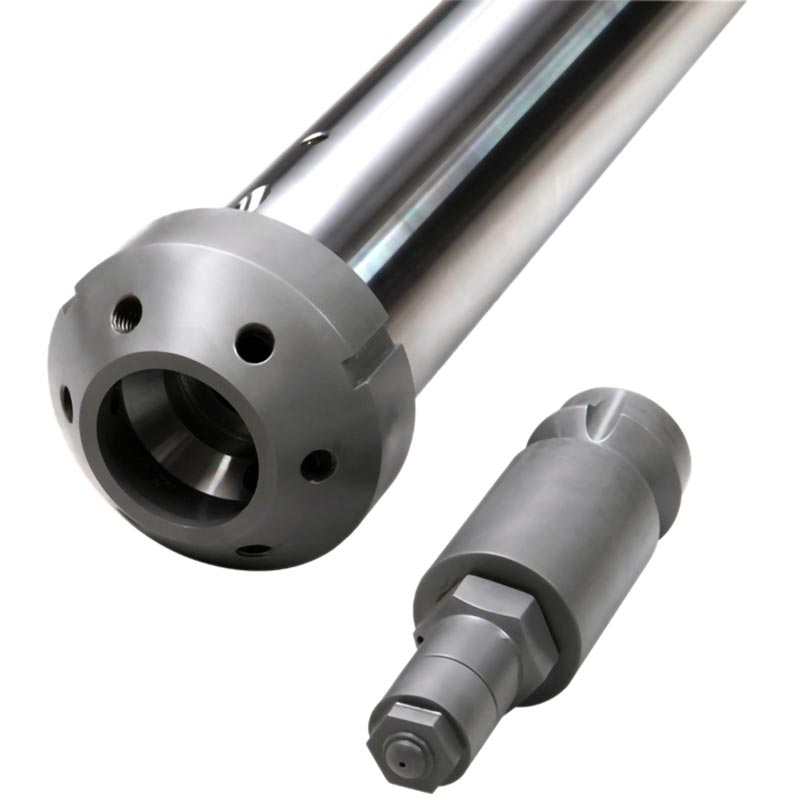

Barrel for Chen Hsong Injection Machine

Upgrading your factory's production output requires high-performance hardware. Procuring a wholesale barrel FOR Chen Hsong Injection Machine from the HAPPY factory guarantees precise dimensional compatibility. Certified under ISO9002, our barrels feature specialized internal alloy layers to eliminate material backflow and combat product defects.

Industry Applications

Standard nitrided components deteriorate rapidly under high-pressure processing or heavy fiber loading. The barrel FOR Chen Hsong Injection Machine is specifically hardened to maintain structural integrity across critical industrial sectors:

• Household Appliances: Used for deep-cavity components like washing machine tubs and air conditioner housings. It ensures steady melt delivery, eliminating surface silver streaks and weld lines.

• Automotive Components: Highly resilient against 30%–50% glass-fiber reinforced plastics. Ideal for under-the-hood structural brackets where it cuts inner wall abrasive wear by 35%.

• Precision Electronics: Designed for thin-wall connector production using LCP or PBT resins, maintaining stable injection pressures to eradicate flash and short shots.

Technical Specifications & Geometry

To achieve an exact mechanical fit with your current Jetmaster, Supermaster, or EasyMaster machinery, HAPPY manufactures to verified quantitative benchmarks:

• Base Metal Structure: Premium 38CrMoAlA (SACM645) or specialized hardened SKD61 die steel.

• Reinforcement Process: High-speed centrifugal casting for an integrated 1.5 mm - 3.0 mm thick bimetallic alloy lining.

• Surface Hardness Profile: Nitrided zones reach ≥ 950 HV; bimetallic alloy sections maintain HRC 58 - 66.

• Straightness Rating: Machined strictly to ≤ 0.02 mm per meter to eliminate eccentric screw contact and metal scraping.

Why Choose HAPPY?

We focus on addressing the concrete operational pain points experienced on your factory floor:

• Extended Wear Life: Generic aftermarket barrels often rely on thin surface nitriding that fails within 6 months of fiber contact. HAPPY's thick bimetallic barrier provides a hard-facing shield that quadruples continuous operational life.

• Anti-Seizure Fitment: Poorly tempered barrels warp under localized shear heat, causing severe screw jamming. Our vertical honing processes keep internal bore tolerances precise, protecting your screw assembly from catastrophic snapping.

Custom Manufacturing Flow

Every single barrel FOR Chen Hsong Injection Machine order undergoes a strict, standardized quality-track sequence before export:

1. 1:1 Dimensional Duplication: We cross-reference original Chen Hsong equipment drawings or customer-provided physical wear samples to ensure perfect positioning of pin holes and heater bands.

2. Ultrasonic Integrity Testing: Post-casting non-destructive testing eliminates subsurface micro-fissures or casting porosities.

3. Seaworthy Protective Packing: Units are coated in industrial anti-rust oil, heat-sealed in vacuum moisture barrier film, and secured within reinforced wooden crates to block sea-salt corrosion.

FAQ

Q1: Does this barrel fit all Chen Hsong original injection machine models directly?

A: Yes. This barrel is fully compatible with mainstream Chen Hsong models including Jetmaster, Supermaster and EasyMaster series. We follow original OEM drawings for full-size machining, so no modification is required during installation.

Q2: What material wear problems can this bimetallic barrel solve for daily molding production?

 A: It effectively resists abrasion caused by 30%-50% glass fiber reinforced plastics, and stabilizes melt pressure continuously. It avoids common failures such as inner wall scratch, material backflow and unstable injection pressure that often occur on ordinary nitrided barrels.

Q3: Why does your barrel have much longer service life than ordinary aftermarket barrels?

A: Different from thin single-layer nitrided barrels on the market, our barrel FOR Chen Hsong Injection Machine adopts 1.5-3.0mm integrated centrifugal casting bimetallic lining. The high-hardness alloy layer keeps stable inner wall tolerance long-term, extending service life by 4 times under long-term fiber material processing.
