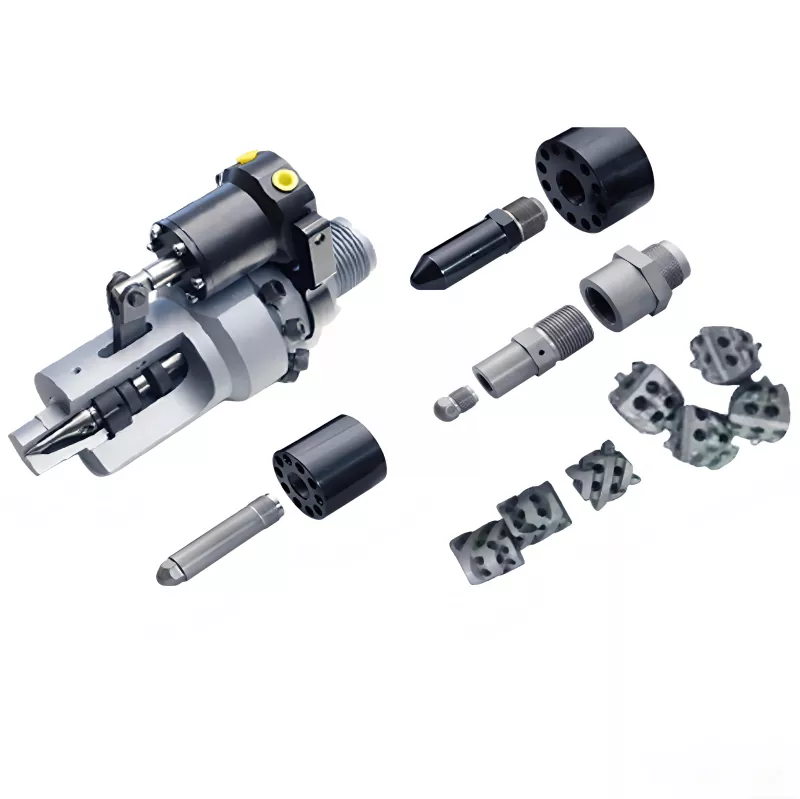

Screw Barrel Head and Nozzle

Sourcing from a professional manufacturer of Screw Barrel Head and Nozzle enables factories to stably process high-abrasion and corrosive engineering plastics. HAPPY PLASTICS adopts multi-axis CNC thread grinding, internal centrifugal bimetallic casting and special heat balance flow channel polishing to eliminate flow dead zones that cause thermal degradation of heat-sensitive or high-filler plastics. Whether processing abrasive glass fiber reinforced engineering plastics or high-transparency optical raw materials, our integrated accessories effectively avoid internal melt pressure loss, nozzle drooling and excessive material shear.

Integrated Injection Plasticizing System Design Concept

The integrated Screw Barrel Head and Nozzle assembly is the core thermal and power execution unit of an injection molding machine. Unlike separate scattered matching accessories from different suppliers, our product integrates plasticizing screw, heating barrel, front transition flange (screw head) and outlet nozzle tip into one continuous sealed pressure flow channel.

This integrated design eliminates step-shaped inner steps and uneven assembly gaps caused by mixed accessories from different manufacturers. The seamless flush transition of all flow passages realizes full sealing; raw plastic pellets are fully sheared into uniform melt, and accurate fixed-volume injection into the mold gate is completed without melt backflow or pressure attenuation.

Customized for Different Resin Characteristics

Ordinary standard accessories will wear and fail quickly when facing corrosive volatile gas from flame retardants or strong scouring of glass fiber fillers. HAPPY PLASTICS customizes the metallurgical material of Screw Barrel Head and Nozzle according to your actual production formula:

1. Glass fiber reinforced engineering plastics

Screw flight surfaces adopt PTA plasma transferred arc surfacing tungsten carbide wear-resistant layer, matched with bimetallic lined barrel and high-hardness tool steel nozzle tip to resist long-term continuous scraping of glass fiber.

2. Heat-sensitive & corrosive resins

Adopt low-compression wide-flight chrome-plated screw + mirror polished transition head design to eliminate material retention dead zones and prevent hydrochloric acid from pitting and corroding metal surfaces.

3. High-transparency optical materials

Equipped with special low-shear mixing nozzle tip and ultra-high-gloss mirror polishing (Ra ≤ 0.15μm), thoroughly eliminate black speck impurities, material yellowing and optical internal stress cracking of transparent lenses.

Advanced Nozzle Structure

The nozzle is the key temperature transition section connecting the barrel heating zone and cold mold runner. Our integrated Screw Barrel Head and Nozzle is equipped with advanced melt shut-off structures to achieve complete melt cut-off after each injection stroke:

• Active needle valve shut-off nozzle: Suitable for low-viscosity raw materials such as PA6. Built-in pneumatic/hydraulic control pin, instantly sealing the nozzle orifice at the end of injection to completely solve drooling and wire drawing defects.

• Independent balanced temperature control system: Matched with special ceramic heating rings and separate thermocouple layout, the melt temperature at the nozzle outlet is stably controlled within ±0.5℃ to prevent cold material plugs from entering the mold cavity and causing product defects.

Complete Standardized Production Process

To guarantee each set of integrated Screw Barrel Head and Nozzle runs in perfect coordination, HAPPY PLASTICS implements a full-automatic closed-loop production process: [1. Rheological Performance Analysis] ➔ [2. Multi-Axis CNC Thread Precision Grinding] ➔ [3. Centrifugal Bimetallic Liner Casting] ➔ [4. Integrated Flow Channel Mirror Polishing]

1. Rheological Performance Analysis: Calculate the target injection weight curve and compression ratio according to customer material data sheet and mold pressure requirements.

2. Multi-Axis CNC Thread Precision Grinding: CNC precision machining screw profiles to control strict screw-barrel matching clearance and prevent melt backflow during injection.

3. Centrifugal Bimetallic Liner Casting: The barrel inner wall is centrifugally cast with 3.0mm thick Fe-Cr-Ni-B alloy lining under high temperature to eliminate internal tiny pores.

4. Integrated Flow Channel Mirror Polishing: All internal flow passages of transition head and nozzle are mirror polished to achieve smooth first-in first-out melt delivery without retention.

FAQ

Q: The finished parts still have continuous black specks even after full machine purging, what is the root cause?

A: Black specks are carbonized plastic formed by long-term retention and overheating of raw materials. They mostly accumulate in uneven assembly gaps: mismatched thread tolerance between nozzle and transition head, or clearance gap between barrel tip and screw head. Upgrading to integrative co-designed Screw Barrel Head and Nozzle ensures all connecting surfaces are fully flush without micro gaps, completely removing material retention positions that cause carbonization.

Q: We do not retain the original equipment drawings, can your factory reverse-engineer and produce a complete matching plasticizing unit?

A: Yes. HAPPY PLASTICS has a global technical database covering standard plasticizing unit parameters of mainstream international injection molding machine brands. You only need to provide the injection molding machine brand, model specification and production year marked on the nameplate. For non-standard modified equipment, we will provide a detailed step-by-step measurement guide for you to record rear spline, keyway, barrel flange bolt hole size and other key dimensions to produce fully interchangeable direct replacement parts.

Q: What warranty service do you offer for production lines processing high-abrasion glass fiber materials?

A: We provide a complete 12-month structural warranty for the integrated Screw Barrel Head and Nozzle system. Under standard normal operating parameters, free replacement is available for manufacturing defects, component cracking and alloy layer peeling. Each batch of goods is delivered with complete quality documents including metallurgical material test report, barrel inner hole laser concentricity certificate and installation & commissioning operation video to support rapid on-site startup.
