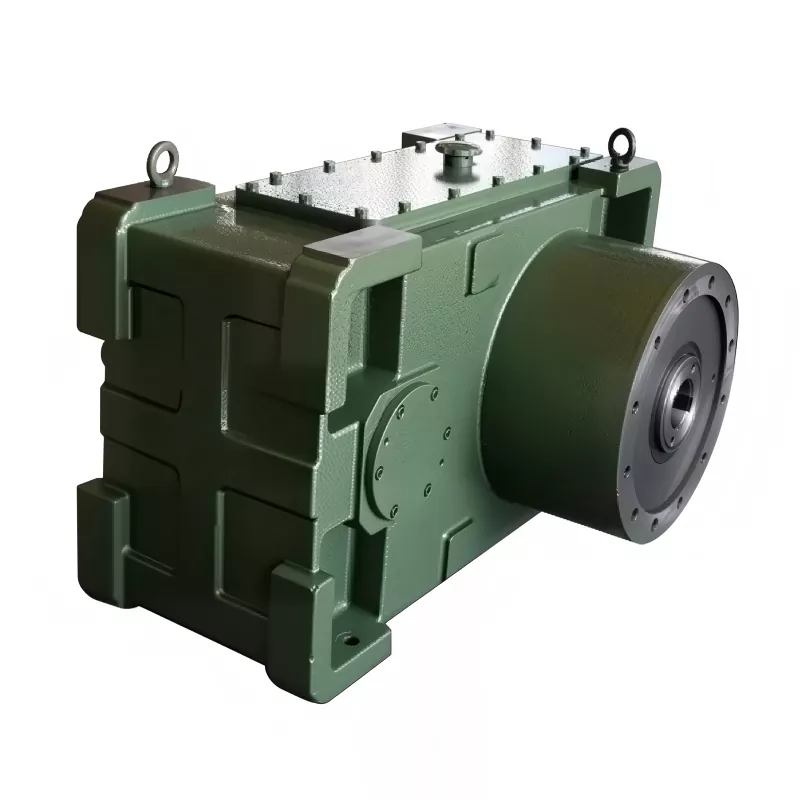

Integrated Extruder Gearbox

Partnering with a specialized China Integrated Extruder Gearbox manufacturer and supplier gives your factory a distinct competitive advantage. The HAPPY PLASTICS brand engineers this compact machine using a direct-coupled framework that eliminates old-fashioned flexible couplings. This shorter drive path creates a highly reliable drivetrain. Whether you are designing next-generation extrusion lines or upgrading existing machinery, this premium transmission unit is the ideal sourcing choice to maximize your factory layout.

Space Utilization

Traditional extrusion setups require long, spread-out drive tables to hold separate gearboxes, motor bases, and external thrust bearing blocks. Our all-in-one assembly solves this layout challenge by packing all three functions into a single compact housing:

[Split Drive System: Separate Components] ➔ Requires Large Mounting Footprint

[Integrated Extruder Gearbox System] ➔ Reduces Needed Space by up to 40%

• Minimized Footprint: By bolting the motor directly to the input flange, this unit cuts down on axial space requirements, allowing you to fit more production lines into your factory.

• Simplified Foundation Requirements: The unified structure requires fewer anchoring points on the machine frame, which simplifies base construction and lowers structural installation costs.

Structural Rigidity

When a separate motor, gearbox, and thrust block are bolted onto a flexible steel frame, the components can shift under load, causing shaft misalignment. The structural layout of the integrated extruder gearbox removes this mechanical risk through its monoblock design:

• Permanent Factory Alignment: Because all internal shaft bores are machined in a single setup on CNC equipment, the internal components remain perfectly aligned for life.

• Twist-Resistant Housing: The thick, cast-iron frame absorbs the immense twisting forces from high-torque motors, preventing internal gear tilting and uneven tooth wear.

Minimal Maintenance Through Integrated Design

Operating a standard drive setup requires constant maintenance checks on universal joints, coupling inserts, and external grease points. Choosing a unified platform allows your maintenance crew to focus on other areas by removing these wear-prone parts:

• Coupling-Free Operation: Driving the internal helical gears directly from the motor shaft removes flexible couplings completely from the routine maintenance checklist.

• Centralized Oil Management: Instead of managing multiple oil wells across separate components, this extruder gearbox uses a single, centralized oil pool to lubricate both the reduction gears and the heavy-duty thrust bearing.

Operational Life Protection

The heavy backward pressure generated during plasticization can push back against a drivetrain with extreme force (45 MPa - 65 MPa). The internal engineering of this integrated extruder gearbox safely neutralizes these high axial loads:

• Direct-Line Force Transfer: The internal tandem thrust bearing captures the screw's backward push and channels it straight down into the heavy machine foundation.

• Gear Train Isolation: This smart redirection of force ensures that the delicate reduction gears experience only smooth, rotational torque, completely shielding the gear teeth from axial impact damage.

FAQ

Q: How does this compact transmission handle heat differently than traditional split-frame systems?

A: Split systems release heat across separate housings, which can lead to uneven thermal expansion. Our modern layout uses built-in cooling channels cast directly into its unified main frame. This system works alongside an internal oil circuit to cool the gears and the thrust bearing evenly, keeping the lubricant at a stable viscosity.

Q: Can this drive configuration be used to replace an older split system during a factory rebuild?

A: Yes. The integrated extruder gearbox is an excellent choice for factory retrofits. Our engineering team can analyze your current motor power, required screw speeds, and frame space to build a custom-adapted unit. We will provide a 2D layout drawing to ensure the new gearbox bolts cleanly onto your existing machine frame.

Q: What factory quality testing does this compact drive unit undergo before shipping?

A: Every single unit undergoes strict quality inspections on our factory test benches before final crating. We provide a complete documentation package with your order, including a gear-meshing contact chart, an operational noise decibel log, a leak-test certification, and a material composition report.
