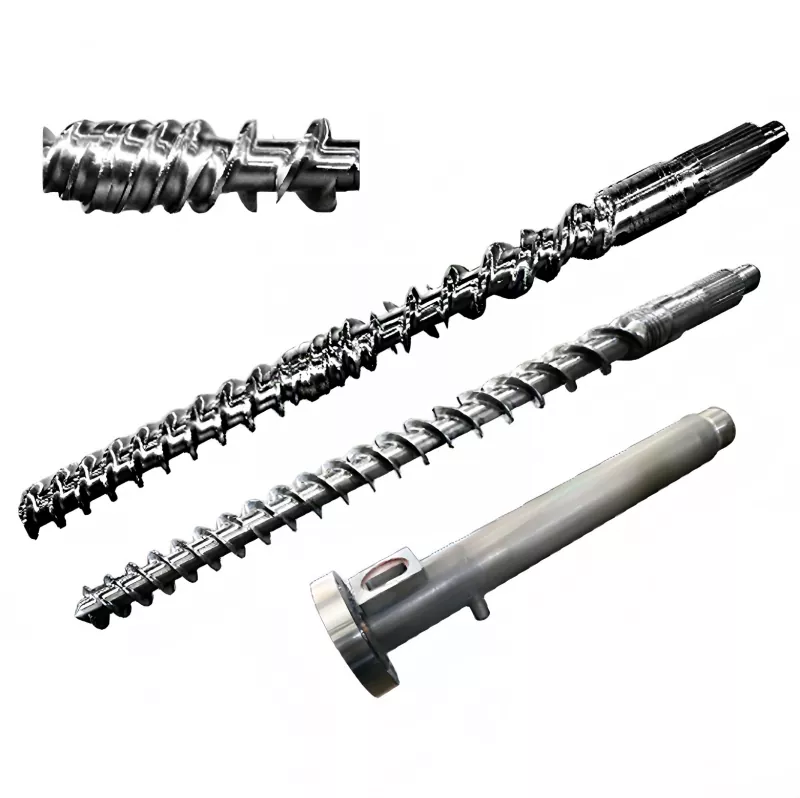

Rubber Extrusion Screw and Barrel

Partnering with an experienced China Rubber Extrusion Screw and Barrel manufacturer allows your facility to maintain precise thermodynamic control over highly temperature-sensitive elastomers. By combining multi-axis CNC flight grinders, advanced internal deep-hole bimetallic cladding, and deep axial core-drilling, HAPPY PLASTICS builds heavy-duty processing sets that resist the intense mechanical tearing forces of high-filler formulations without causing localized thermal degradation.

Custom Engineering Workflow

Generic screw geometries often cause excessive material friction and localized hot-spots. To prevent premature vulcanization, HAPPY PLASTICS engineers every Rubber Extrusion Screw and Barrel set according to the rheological profile of your specific elastomeric compound:

[1. Compound Rheology Review] ➔ [2. Multi-Axis CNC Flight Grinding] ➔ [3. Plasma Stellite Armoring] ➔ [4. Ultra-Fine Internal Honing]

• Compound Rheology Review: We analyze your filler loading (Carbon Black, Silica, or calcium carbonate) and curing curves to determine the required compression index.

• Multi-Axis CNC Flight Grinding: Screw thread profiles are precision-milled with varying pitch depth to match cold-feed or hot-feed processing dynamics.

• Plasma Stellite Armoring: Flight crests receive an automated plasma-arc welding treatment with premium cobalt-based or tungsten carbide alloys.

• Ultra-Fine Internal Honing: The interior barrel bore is honed to a strict mirror finish (Ra ≤ 0.2μm) to eliminate micro-pockets where rubber material could stagnate.

Advanced Temperature-Control Architecture

Unlike standard thermoplastic processing, rubber extrusion requires continuous thermal suppression to prevent material scorching. Our Rubber Extrusion Screw and Barrel assembly features an integrated dual-loop fluid tempering network designed to manage intense frictional heat:

• Axial Core Tempering: The screw shaft is deep-hole bored through its entire longitudinal axis, establishing an internal path for pressurized water or heat-transfer oil to cool the flight roots directly.

• Independent Barrel Zoning: The barrel body is divided into multiple independent heating and cooling sectors. Deep spiral grooves cut beneath the inner sleeve allow your automated line controllers to inject cooling water instantly when shear heat spikes, keeping processing temperatures within a narrow ±1℃ operating window.

Targeted Industrial Applications

HAPPY PLASTICS’s Rubber Extrusion Screw and Barrel designs provide the geometric stability needed to handle high-head pressures across heavy-duty rubber product lines:

• Automotive Sealing Systems: Engineered to handle dense EPDM compounds with high oil content. The specialized pin-barrel integration ensures a uniform, bubble-free melt stream for multi-channel door and window weatherstrips.

• Tire Component Lines: Designed to withstand the intense scouring of high-silica tread and sidewall compounds. Our bimetallic armor maintains tight operational tolerances over prolonged production runs.

• Industrial Hoses & Profiles: Optimizes the feeding of natural rubber or SBR compounds into continuous vulcanization (CV) lines, minimizing volumetric pulsation spikes to secure consistent product wall thicknesses.

Factory Verification & Structural Warranty

Every Rubber Extrusion Screw and Barrel set produced by HAPPY PLASTICS undergoes rigorous non-destructive testing before export packaging to guarantee long-term performance stability:

• Laser Bore Alignment Analysis: Every finished barrel assembly is inspected using a digital laser alignment system to ensure the internal bore straightness deviation remains below 0.02mm per meter.

• Ultrasonic Alloy Bonding Checks: The interface between the bimetallic base steel and the centrifugally cast inner sleeve is scanned ultrasonically to confirm complete, defect-free material bonding.

• 12-Month Structural Protection: We provide an ironclad 12-month structural warranty against manufacturing flaws, body cracking, or premature layer delamination under standard processing parameters.

• Traceable Documentation Packet: Each shipment is delivered with a complete quality file, including a material composition certificate, an industrial hardness validation report, and a dynamic balancing log for the screw shaft.

FAQ

Q: Why are we experiencing un-plasticized rubber lumps in our finished hoses?

A: Un-plasticized lumps usually mean your cold-feed strip isn't receiving enough distributive mixing before hitting the die head. This often happens if the screw’s length-to-diameter ratio is too short for a cold-feed setup or if the flight flanks are worn down, allowing the rubber compound to slip back through the clearances. Upgrading to a longer Rubber Extrusion Screw and Barrel equipped with internal pin-mixing segments splits and folds the material stream repeatedly, ensuring complete thermal uniformity.

Q: Can your engineering team manufacture a matching screw set if our original equipment blueprints are missing?

A: Yes. If your machine's original documentation is unavailable, simply provide the extruder manufacturer's brand, model designation, and production year from the nameplate. Our engineering database covers most major domestic and international extruder frame sizes. For modified or custom lines, we will guide you through a step-by-step physical dimension sheet to capture the exact rear spline, drive key, and mounting flange configurations required.

Q: How does a high-silica compound affect the wear lifespan compared to standard carbon black?

A: Silica particles have highly irregular geometries and exhibit significantly higher hardness than carbon black, converting the rubber compound into a highly abrasive scouring paste. Running high-silica formulations on standard gas-nitrided steel will strip away the hard surface layer within a few months of operation. For these specialized lines, we use plasma-transferred arc welding to apply a thick tungsten-carbide matrix coating across the screw flights, extending the operational life of the assembly by up to 3 times.
