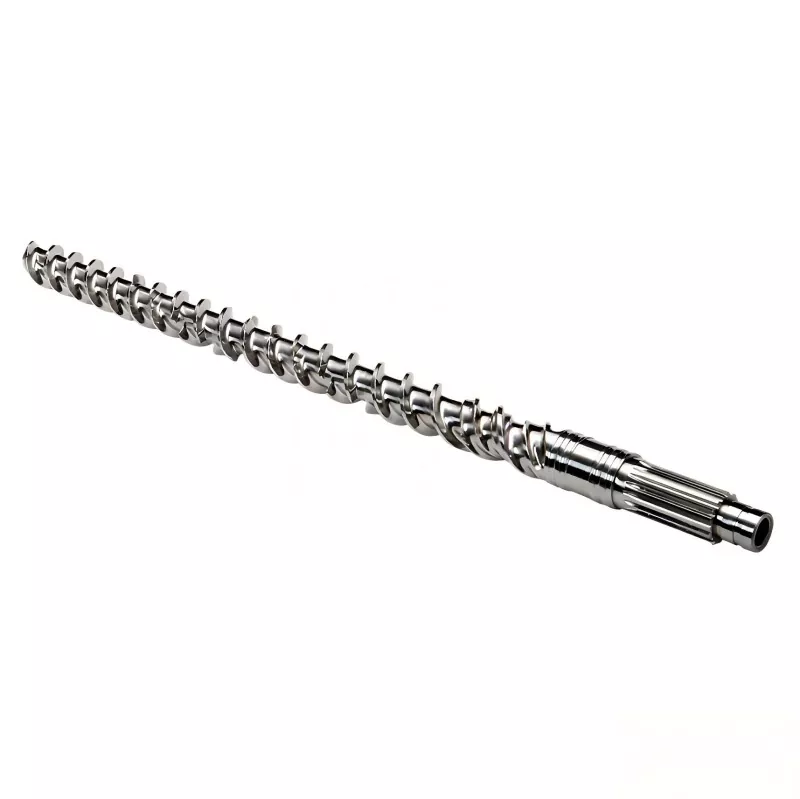

Extruder Feed Screw And Barrel

Procuring a customized wholesale Extruder Feed Screw And Barrel directly from China's HAPPY PLASTICS factory ensures maximum intake efficiency for high-filler and regrind materials. Equipped with localized barrel cooling channels and hard-surface nitriding, our assemblies minimize premature material softening and cut routine mechanical replacement costs by 25%.

Processing Challenges Across Raw Material Types

Standard universal geometries suffer from rapid abrasive wear and severe material slippage when feeding uneven raw materials. Each custom Extruder Feed Screw And Barrel from HAPPY PLASTICS is engineered to stabilize the mass flow rate across demanding extrusion setups:

• Low-Density Recycled Flakes: Optimizes the feeding of low-bulk-density film flakes, crushed regrind, and mixed post-consumer plastics without throat choking or bridging.

• Highly Filled Composites: Resists the intense abrasive friction caused by resins blended with wood flour, agricultural fibers, or heavy calcium carbonate additives.

• Sticky Engineering Masterbatches: Delivers consistent high-pressure conveying for complex elastomer bases, concentrated pigments, and chemical flame retardants.

Metallurgical Engineering & Surface Hardening Standards

This heavy-duty Extruder Feed Screw And Barrel relies on deep-layer bimetallic alloy defense systems rather than basic surface treatments to handle unplasticized, rigid solid particles:

Geometric Selection Strategy

Matching Extruder Feed Screw And Barrel geometry to your specific material form prevents initial conveying failures:

• Powders vs. Pellets: When running fine PVC or chemical powders, choose our force-feeding, shallow-groove thread profiles to prevent powder fluidization. For bulky plastic pellets or regrind flakes, implement deep-groove feeding zones with a gradual compression transition to maximize intake volume.

• Fiberglass Reinforcement: If your compound contains more than 15% fiberglass or mineral fillers, bypass standard nitrided steel entirely. Specify an integrated tungsten carbide bimetallic lining for the barrel inner wall paired with full nickel-based alloy encapsulation on the screw flights.

Plant Floor Preventative Maintenance Routines

Implementing strict thermal and physical checks protects your machinery from sudden downtime:

• Preventive Thermal Isolation: Always verify that the feed throat cooling water loop is scale-free and flowing smoothly before starting production. If the Extruder Feed Screw And Barrel inlet zone exceeds 60°C during operation, solid pellets will melt prematurely inside the hopper throat, causing material bridging and stopping the feed entirely.

• Clearance Wear Audits: Measure the radial clearance gap between the screw flight outer diameter and the barrel inner liner every six months. Once the mechanical clearance exceeds 1.5 times the original factory design specification, back-pressure leakage will rise sharply, reducing output efficiency by up to 30%.

Direct Factory Manufacturing Safeguards

Partnering directly with HAPPY PLASTICS as an original manufacturer eliminates intermediate markups while ensuring strict structural accuracy:

• Paired Co-Axial Boring: We machine screws and barrels in matching sets on specialized CNC deep-hole boring rigs. This maintains absolute straightness and strict concentricity, eliminating uneven friction spots that crack bimetallic liners.

• ISO9002 Certified Testing: Every Extruder Feed Screw And Barrel undergoes non-destructive ultrasonic flaw detection and precise coordinate measuring machine (CMM) dimensional verification before leaving our facility.

• Full Replacement Warranty: All parts include an actionable 90-day free replacement warranty covering structural or material defects, with a reliable 40-day turnaround time on custom OEM drawing orders.

Root-Cause Production Troubleshooting

Why is our extrusion line experiencing irregular output surging?

Output surging often stems from an unstable solid-bed conveying rate inside the intake zone. If the resin slips against the barrel wall instead of moving forward, the downstream head pressure fluctuates. Our Extruder Feed Screw And Barrel features precision-machined axial grooves inside the feed section liner, increasing material-to-barrel friction and forcing a constant, positive displacement of solids.

What causes rapid flight wear specifically within the first three heating zones?

The feeding section suffers the highest mechanical stress because the raw material is still cold, hard, and un-melted. Rigid pellets act as abrasives against the raw steel. To resolve this, we apply a high-density bimetallic alloy spray directly onto the screw flight crests, raising local hardness past 62 HRC to block particulate abrasion.

Is it possible to replace only the worn intake area rather than the entire assembly?

Yes, provided your machinery supports modular split-barrel configurations. We build modular, drop-in replacement sleeves and screw segments engineered to match original international machine tolerances exactly. This lets you upgrade only the high-wear intake section, saving up to 50% in component costs compared to buying a full-length Extruder Feed Screw And Barrel assembly.
