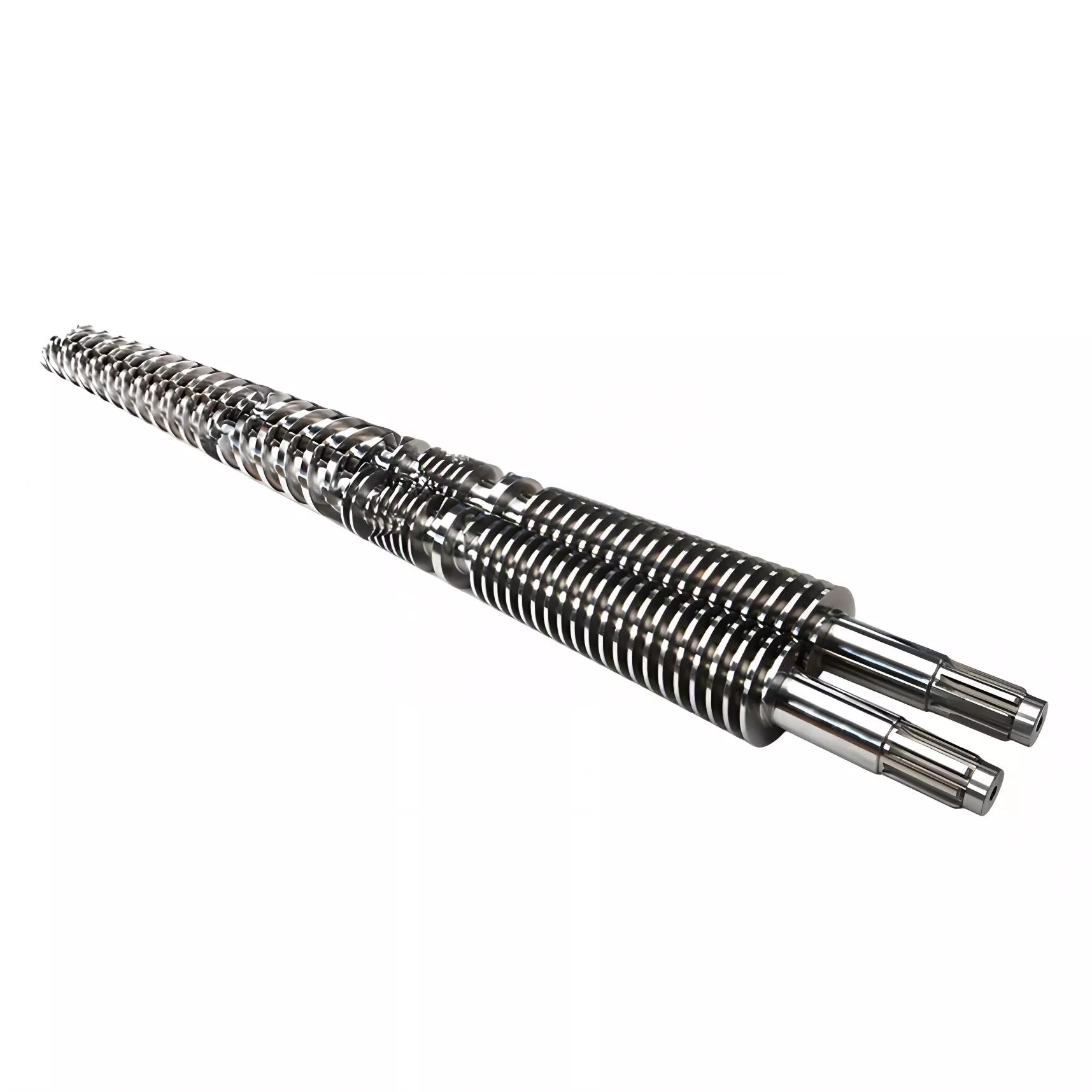

Conical Twin Screw and Barrel

Sourcing from a professional Chinese manufacturer of Conical Twin Screw and Barrel enables PVC profile production lines to maintain stable melt status under high extrusion pressure. HAPPY PLASTICS adopts special multi-axis CNC taper milling machines and mature centrifugal bimetallic casting technology to manufacture heavy-duty twin screw & barrel assemblies. The products adapt to high calcium carbonate filling and severe hydrogen chloride corrosion from PVC decomposition, without local torque surges during continuous operation.

Core Principle of Conical Plasticization

Conical Twin Screw and Barrel is a special melt conveying equipment customized for heat-sensitive powder formulations with large amounts of mineral fillers. Different from parallel twin screws, the meshing double screws adopt gradient variable-diameter design: the feeding end has a large outer diameter, and the discharge compression end gradually shrinks to form a narrow high-pressure metering section.

This unique tapered structure allows direct feeding of PVC dry mix powder and WPC wood-plastic composite materials into the large-volume feeding zone. As materials advance along the screw channel, the continuously reduced flow volume automatically completes compaction, vacuum degassing and uniform plasticization, outputting stable and consistent melt pressure to profile or pipe extrusion dies.

4-Step Custom R&D Production Process

Universal fixed taper angles easily cause local over-compression and material scorching. HAPPY PLASTICS customizes the full flight profile of every set of Conical Twin Screw and Barrel according to customers’ actual production formulas, with standardized engineering flow as below:

[1. Rheological Performance Test] ➔ [2. Multi-Axis CNC Taper Thread Milling] ➔ [3. Automatic PTA Plasma Alloy Surfacing] ➔ [4. Full Flow Channel Mirror Polishing]

1. Rheological Performance Test: Engineers calculate the optimal compression ratio according to your calcium carbonate addition ratio and target product wall thickness.

2. Multi-Axis CNC Taper Thread Milling: Special CNC taper thread processing equipment ensures consistent matching tolerances from feeding end to discharge end of the tapered screw.

3. Automatic PTA Plasma Alloy Surfacing: Plasma transferred arc welding coats high-hardness nickel-based or tungsten carbide alloy on screw flight tops and high-pressure wear areas.

4. Full Flow Channel Mirror Polishing: The entire screw inner channel achieves flawless mirror finish with surface roughness Ra ≤ 0.15μm to eliminate material retention and facilitate smooth melt demoulding.

Actual Application Case Data

Our customized conical twin screw equipment runs stably on production lines in Europe, South America and Southeast Asia. The following real production data is provided by our long-term global cooperative compounding manufacturers:

• Rigid PVC Window Profile Factory (Turkey): Model 80/156, formula with 25 phr calcium carbonate. Ordinary full-nitrided screw barrel failed after only 7 months due to severe flight abrasion. After replacing with HAPPY PLASTICS bimetallic Conical Twin Screw and Barrel, the unit has run continuously for more than 22 months with no melt pressure attenuation.

• WPC Hollow Decking Extrusion Line (Vietnam): Model 65/132, 60% wood flour blended with PE composite raw material. Custom optimized screw flight depth eliminates long-standing melt overheating faults, reduces power consumption by 11% and lifts total extrusion output.

Industry Comparative Advantages

Purchasing cheap generic conical twin screw accessories easily leads to early PVC yellowing, screw jamming and frequent shutdowns. Our exclusive structural design for Conical Twin Screw and Barrel brings obvious advantages over ordinary standard products:

1. Full flank alloy cladding: Ordinary manufacturers only weld alloy on screw flight tops. HAPPY PLASTICS coats wear-resistant bimetallic alloy on the entire flight top and pushing flank to keep stable conveying efficiency for long-term production.

2. Thermal expansion buffer transition layer: A gradient metallurgical transition layer is reserved under the alloy cladding, avoiding surface layer cracking and peeling caused by rapid temperature rise during equipment cold startup.

3. Precision self-cleaning matching clearance: Strict machining tolerances form interlocking self-cleaning thread profile along the whole tapered section, automatically scraping residual stagnant material to prevent PVC carbonization and black speck defects.

FAQ

Q: Why do dark black specks always appear on transparent and light-colored PVC profiles during production?

A: Black specks originate from long-term stagnation and thermal carbonization of PVC materials. Rough screw surfaces or acid-corroded micro pits will trap PVC powder, which overheats and peels off into melt flow. Switching to our Conical Twin Screw and Barrel with full-channel mirror polishing and nickel-based bimetallic inner lining completely eliminates all material retention dead zones.

Q: How does high calcium carbonate filling affect the service life of tapered screw flanks?

A: A large amount of mineral filler turns PVC melt into abrasive slurry, which quickly wears out ordinary nitrided steel surfaces. When the formula calcium carbonate content exceeds 20 phr, standard screws will lose standard matching clearance within several months. Production lines with high filling ratio must adopt customized Conical Twin Screw and Barrel reinforced with tungsten carbide alloy matrix to resist long-term abrasive scouring.

Q: We have no original extruder drawings or CAD files, can your factory complete reverse engineering customization?

A: Yes. You only need to provide the extruder brand, model specification (such as 55/110) and production year marked on the equipment nameplate. Our database covers most mainstream domestic and foreign conical twin screw extruder structural parameters. For modified non-standard equipment, we will send a detailed step-by-step measurement guide for you to record key spline and taper dimensions, then draw 3D CAD drawings for your confirmation before formal production.
