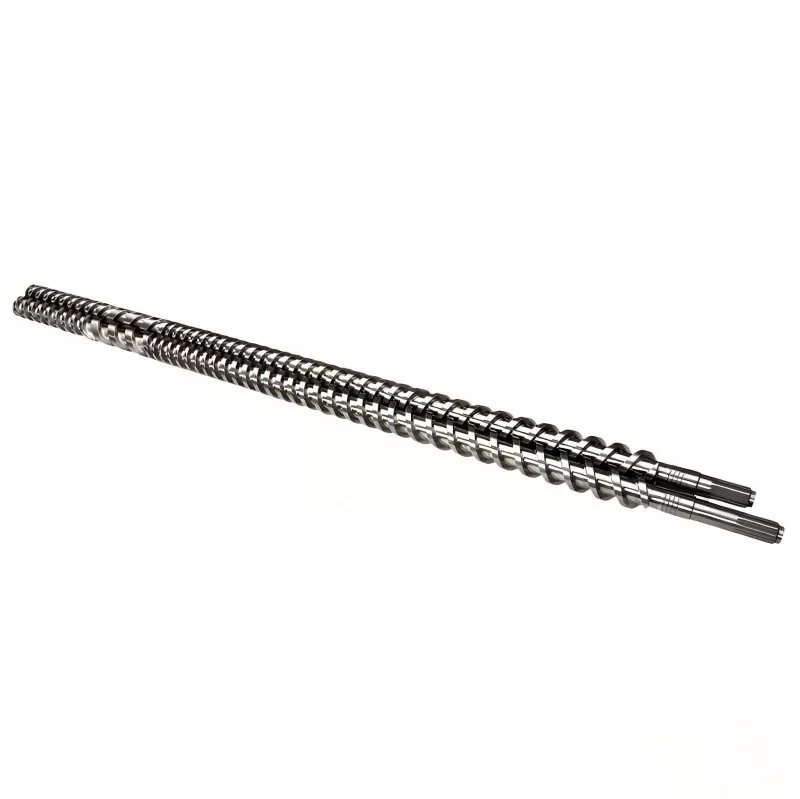

Parallel Twin Screw and Barrel

Procuring from an experienced China Parallel Twin Screw and Barrel manufacturer allows compounding facilities to maintain consistent shear fields during high-throughput runs. HAPPY PLASTICS utilizes advanced multi-axis CNC grinding centers and modular segment technology to deliver fully customizable screw elements and matching clad barrels that handle aggressive glass-fiber reinforcement, mineral filling, and volatile devolatilization without torque drops.

Technical Specifications & Modular Tolerances

To guarantee reliable self-cleaning performance and interchangeable segment positioning, the HAPPY PLASTICS Parallel Twin Screw and Barrel setup is machined to exact geometric standards:

• Structure Format: Modular segmented screw elements mounted on high-torque splined shafts, paired with sectioned or continuous barrels.

• Center Distance Precision: Axial centerline tolerance between the two bores is held within +0.01mm / -0mm to prevent erratic flight-to-flight friction.

• Premium Tool Steels: Screw elements are crafted from vacuum-hardened W6Mo5Cr4V2 (M2) high-speed tool steel or HIP (Hot Isostatic Pressing) powder-metallurgy alloy with a hardness rating of 60-64 HRC.

• Barrel Lining Technology: Individual barrel blocks are lined with an oval-shaped, centrifugally cast 3.0mm bimetallic sleeve composed of a high-tungsten carbide matrix.

How Do Custom Segment Configurations Maximize Compounding Output?

A static screw setup cannot adapt to changing polymer viscosities. By rearranging our modular Parallel Twin Screw and Barrel segments along the high-torque shaft, operators can precisely tune the mechanical energy input:

Kneading Block Adjustments for Fiber Dispersion

By configuring kneading discs at staggered angles (45° or 90°), the assembly applies intensive planar shear to split glass fiber bundles without snapping them below the critical reinforcement length, increasing the mechanical tensile strength of the compound.

Reverse-Flight Elements for Vacuum Devolatilization

Placing a reverse-threaded screw element right before the vacuum vent zone creates a continuous material seal. This structural block forces the melt channel to fill completely, building up pressure before the resin drops into the decompression zone where volatile gasses escape cleanly.

Step-by-Step Spline Cleaning and Reassembly Protocol

Improper handling of individual modular pieces during changeovers can cause shaft seizing or flight collisions. Follow this sequence when rebuilding your modular Parallel Twin Screw and Barrel assembly:

1. Hot Segment Extraction: Slide the worn screw elements off the splined shafts immediately after extraction while the residual polymer is still hot (>200℃).

2. Spline Inspection: Clean the internal splines of the elements and the external splines of the shaft using brass wire wheels. Check for twisted spline teeth that indicate historical over-torque.

3. Anti-Galling Lubrication: Apply a uniform layer of high-temperature nickel-based anti-seize paste (>1000℃) to the shaft before sliding the new segments into place to prevent cold welding.

4. Axial Compression Tightening: Torquing the front screw tip must be done using a calibrated manual torque wrench. Over-tightening stretches the internal tie-rod, while under-tightening allows polymer melt to leak between element faces.

What Process Signals Indicate It Is Time to Inspect Your Hardware?

Compounding plants should track these system variables to determine if their internal Parallel Twin Screw and Barrel clearances have expanded beyond efficient compounding limits:

Product-Specific Technical FAQ

Q: Why do we see rapid wear on the screw elements directly under our side-feeder inlet?

A: The side-feeder introduces cold, abrasive mineral fillers (like talc or CaCO₃) into a partially molten polymer matrix. This creates an un-wetted abrasive paste that scours standard tool steels. To prevent this, the Parallel Twin Screw and Barrel zone under the feed port should utilize specialized powder-metallurgy (HIP) screw elements with high vanadium-carbide fractions to achieve a prolonged service life.

Q: Can we mix and match your replacement screw segments with our original European extruder shafts?

A: Yes. HAPPY PLASTICS utilizes precise involute spline profiles according to DIN 5480 standards. If you provide your current shaft spline parameter data (such as the number of teeth, module, and pressure angle), we can supply drop-in compatible Parallel Twin Screw and Barrel segments that slide cleanly onto your existing OEM shafts.

Q: How do we safely clear a solid polymer freeze-up inside the twin-barrel assembly?

A: Never use localized open flames from oxy-acetylene torches to melt the polymer plug, as this uneven heating warps the alignment of the barrel bores and softens the bimetallic liner. Instead, bring all barrel heating zones up to 30℃ above the polymer melting point, allow a 60-minute heat soak, and use the extruder motor's low-speed jogging function to push out the softened mass.

Packaging Standards & Structural Warranty

To prevent shifting, bending, or humidity damage during international maritime transport, HAPPY PLASTICS implements a high-security shipping process:

• Heavily Reinforced Packaging Standard: Every modular shaft assembly is coated in anti-rust grease, vacuum-sealed in heavy moisture-barrier laminate film, and locked into form-fitted V-shaped wooden cradles inside an IPPC-certified export crate reinforced with steel banding.

• 12-Month Structural Protection: We offer a full 12-month structural warranty against manufacturing flaws or premature cracking on all Parallel Twin Screw and Barrel components under proper operating parameters.

• Traceable Documentation: Shipments include a comprehensive material test report (MTR), an individual clearance measurement certificate, and a detailed video layout guide for quick on-site commissioning.
